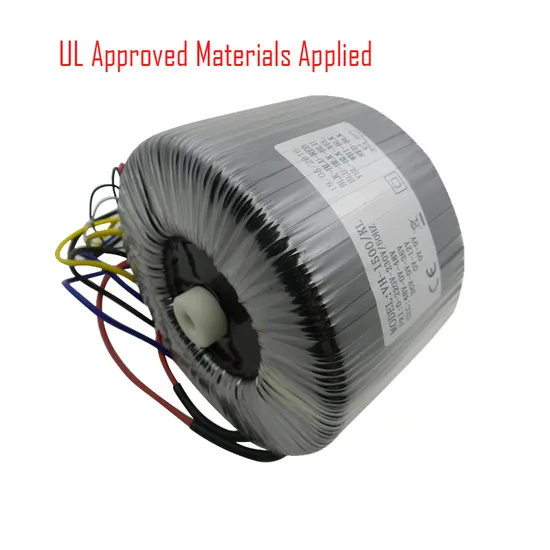

2 Year Warranty Toroidal Electrical Transformer 230V 240V 24V 50W 200W 300va 500va for Power Application

Product Description

Product Description
Product Parameters

Working Frequency	50/60Hz
Rated power	3VA to 10000VA
Windings	Copper wire or Aluminum as per customer's requirements
Insulation class	Class B Class F and Class H
Certification	CE , ROHS, Reach, ISO9001
Temperature rise	≤65°C
Core materials	CRGO silicon steel core
Customer label	Accepted
OEM ODM	Accepted and welcome

Model	Power (VA)	Dimension(MM)		Weight(KG)
		OD	Height
KXR020-XXX-XX	20	63	28	0.3
KXR050-XXX-XX	50	72	40	0.6
KXR080-XXX-XX	80	78	47	0.9
KXR100-XXX-XX	100	92	48	1.1
KXR120-XXX-XX	120	89	52	1.4
KXR160-XXX-XX	200	99	52	1.8
KXR200-XXX-XX	200	108	52	2.1
KXR250-XXX-XX	250	110	66	2.3
KXR300-XXX-XX	300	112	66	2.7
KXR400-XXX-XX	400	130	70	3.8
KXR500-XXX-XX	500	140	75	4.7
KXR600-XXX-XX	600	145	78	5.5
KXR800-XXX-XX	800	160	80	7.2
KXR1000-XXX-XX	1000	170	90	9
KXR2000-XXX-XX	2000	205	95	13.5
KXR3000-XXX-XX	3000	220	120	18.5
KXR4000-XXX-XX	4000	260	125	24
KXR4500-XXX-XX	4500	285	130	25.5
KXR5000-XXX-XX	5000	295	138	28.5
KXR6000-XXX-XX	6000	300	145	34

Detailed Photos
Our AdvantagesFeatures:
1. Small Size, Low weight
2. Extremely Low level of Radiated Magnetic Field
3. High Effency
4. Reuced Standby Current
5. Very low induced noise(hum)
6. 100% Electrical and Flash Tested
7. Test Voltage Primary to Secondany, 4500V
8. Ambient Operating Temperature:
+40degree Celcius MaxProduction Process:
1. Visual tests of the cores
2. Wrap insulation tape around core
3. Primary winding
4. Primary wire connection
5. 100% tests after primary winding
6. Insulation tape wrap after primary winding
7. Secondary winding
8. Secondary lead wire connection
9. Wrap insulationtape
10. 100% test of all electrical performace
11. Packing
12. Final packing
Company Profile
FAQ Q1: What's the minimum order quantity?
A:100pcs/order.
Q2: What's your payment term?
A: 40% downpayment, the rest to be paid before shipment.
Q3: What's your lead time for each order?
A: Generally 15 days from the day of the down payment received.
Q4: What's the products warranty?
A: 2-years product warranty.
Q5: What's the samples purchasing rule in our company?
A: We supply free samples(samples value not more than 10USD otherwise samples fee needs to be
paid as well) but customer will be required to pay for the samples shipping fee.
Q6: What's our lead time for samples?
A:It's 4-7 working days.
Q7: What's the payment methods we accept?
A: T/T, Paypal, L/C, Credit card etc.
Q8: Is it OK to do customized products?
A: Yes, it's OK. We will do as per customer's design.
Q9: Is OEM/ODM accepted?
A: Yes, we do accept OEM/ODM project. Customer's label is also accepted.

---
