Basic Info.
Certification
ISO 9001:2000, ISO 9001:2008, CE
Suitable for
Aluminum, Alloy, Carbon Steel, Stainless Steel
Depth of Throat: 320mm
Distance Between Housings: 2600mm
Showroom Location
Egypt, Canada, UAE, Australia, None
Warranty of Core Components
2 Years
Video Outgoing-Inspection
Provided
Raw Material
Sheet Metal & Steel Plate
Max Bending Width:3200mm
Motor Power (Kw):7.5
Marketing Type
New Product 2024
Key Selling Points
Automatic
Max Opening Height:380mm
Slider Stroke:120mm

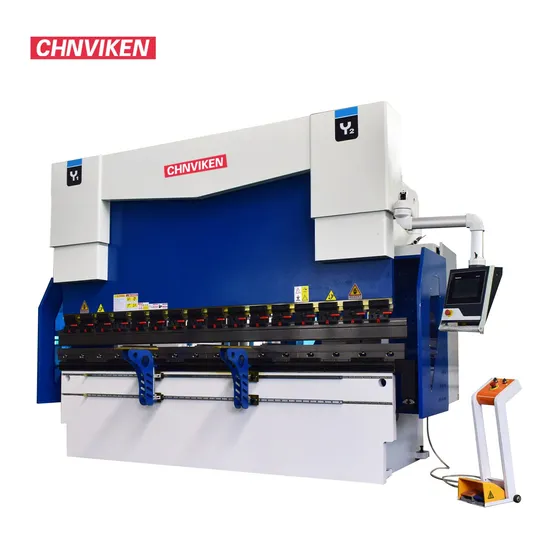

Model:We67K-100t/3200
Bending Pressure:1000kN
Transport Package
Plywood Box
Production Capacity
5000pieces/Year
Product Description
Product Parameters
| Bending Capability | 80/3200 | 100/3200 | 100/4000 | 125/3200 | 125/4000 | 160/3200 | 160/4000 |
| Nominal Force(KN) | 800 | 1000 | 1000 | 1250 | 1250 | 1600 | 1600 |
| Worktable Length(mm) | 3200 | 3200 | 4000 | 3200 | 4000 | 3200 | 4000 |
| Column Distance(mm) | 2650 | 2610 | 3100 | 2610 | 3100 | 2600 | 3050 |
| Throat Depth(mm) | 250 | 320 | 320 | 320 | 320 | 320 | 320 |
| Ram Stroke(mm) | 120 | 120 | 120 | 120 | 120 | 180 | 180 |
| Main Motor Power(KW) | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 11 | 11 |
| No. | Component Name | Details |
| 1 | Controller | DELEM DA53T |
| 2 | Main Motor | Siemens Main Motor |
| 3 | Hydraulic system | RexRoth, Germany |
| 4 | Oil pump | Sunny, America |
| 5 | Electrical components | Schneider, France |
| 6 | Servo motor and driver | Estun, China Nanjing |
| 7 | Grating ruler | GIVI, Italy |
| 8 | Ball screw linear guide rail | HIWIN, China Taiwan |
| 9 | Hydro-cylinder | VIKEN |
| 10 | Bear | NSK, China Shanghai |
| 11 | Punch and Die | 42CrMo Material |
Viken company is a professional enterprise of sheet metal processing equipment such as CNC press brake,
fiber laser cutting machine, panel bender, laser welding machine, hydraulic shearing machine, punching machine
and machine dies & blade.
Our factory has advanced production equipment and a professional production team, which can customize
various types and sizes of equipment according to the different needs of customers. They focus on quality
control and product performance optimization to ensure that each piece of equipment can meet customer
requirements. In order to maximize customer satisfaction, we provide free 7*24 online after-sales service, and
conditional on-site service.
>>
