High Definition-Power Line Communication KS710L

Product Details

Product Description

Product Description

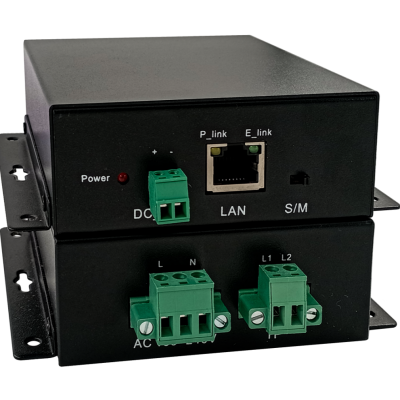

High Definition-Power Line Communication KS710L
The Single-phase power withdrawals type
Products Features:
●Industrial grade quality,sustainable work 30,000 hours.
●The broadband carrier KS710L12V adopts industrial design,using the existing power line network,
maximize the optimization of network networking cumbersome wiring.
●Rigorous hardware design,integrated coupling circuit inside the product,enhanced high voltage
isolation,improved surge protection.
●The power supply is 220V AC with one or two network ports, and with one power output( 12V/24W).
●External protection upgrade : metal shell, high and low temperature resistance, can better shield interference.
Technical data:

Classification	Technical indicators
Power supply	AC power supply：100～220V
PLC Signal port	Voltage AC100-220V power line,slip touch cord，slip ring cable, etc
DC Output	Output DC power supply 12V/24W
Modulation type	OFDM modulation type
Carrier frequency	2～28 MHz
Ethernet bandwidth	10M/100Mbps self-adaption
Transmission distance	Maximum transmission distance：Point-to-point 500 meter class 10 relay 3-5 kilometre
Data delay	Within 10ms
Packet loss probability	Less than0.1%
Overall power consumption	≤3W
Standard agreement	TCP/IP，UDP，Profinet，Home Plug，Modbus-TCP， IEEE 802.3，IEEE 802.3U，IEEE 802.3ab，IEEE 1905.1， IEEE 1900，IEEE 1901 etc
Way of encryption	AES-128 bit
Multicast	Support IGMP multicast protocols,the maximum number of nodes is 128
Exterior dimensions	Size：1149835.2mm （LWH） Weight：330g Install：Earhook
Environmental requirement	Operating temperature：-40℃～85℃ Operating humidity：20%-95%（No condensation） Storage temperature：-40℃～85℃
Working time	Industrial grade, supports 7*24 hours all-weather work

Exterior dimensions:

The PLC's length, width and height are：114x98x35.2mm（without terminals），
four fixing holes in both fixing lugs，fixed with screws M4.
Applications:
The products are suitable for carrier transmission on AC 100V~220V power lines,
such as elevator video monitoring,railway communication monitoring system,
mine monitoring system, security monitoring, factory video monitoring and so on.
