C6241d High Quality Small Turret Lathe Machine Metal Chinese Turret Lathe Machine

Product Description

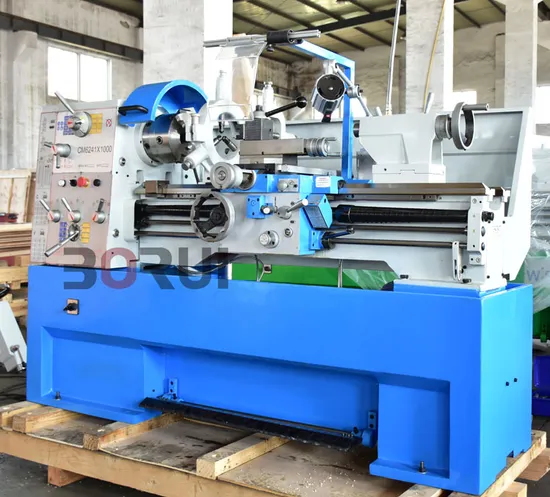

C6241D High Quality Small Turret Lathe Machine Metal Chinese Turret Lathe Machine
Product Application
CF SERIES LARGE SPINDLE HOLE PRECISION LATHE: 1.CD6241 Precision metal lathe machine with one piece cast iron stand.
2.This metal lathe machine lathe variable spindle speed can be ordered as optional accessories.
3.CD6241 Precision metal lathe machine lathe with 1000mm and 1500mm distance between centers for your choice.
4.This conventional metal lathe with precision ground and hardened V-way bed
5.This metal lathe machine totally enclosed universal gearbox allows cutting of inch, metric, whitworth, modular and diametrical threads
6.Headstock gears run in an oil bath and are hardened and precision ground for smooth, quiet and vibration free operation.
Product main technical parameters:

SPECIFICATION	CD6241 /C6241D/CM6241	CD6241V/C6241DV/CM6241V
Swing over bed	410mm(16")
Swing over cross slide	255mm(10")
Swing in gap	580(23")
Length of gap	250(10")
Distance between centers	1000mm(40") /1500mm(60'')
Center height	205(10'')
Width of bed	250(10")
Spindle nose	D1-6
Spindle bore	52mm(2")
Taper of spindle bore	No.6Morse
Range of spindle speed	16 changes 45-1800r/min	30-550r/min or 550-3000r/min
max travel of compound rest	140mm(5-1/2")
max travel of cross slide	210mm(8-1/4")
Leadscrew pitch	4T.P.I.
Max.Section of tool	20×20mm(13/16")
Longitudinal feeds range	0.05-1.7mm/rev(0.002"-0.067"/rev)
Cross oeeds range	0.025-0.85mm(0.001"-0.0335"/rev)
Metric threads range	39kinds 0.2-14mm
Inch threads range	45kinds 2-72T.P.I
Diametrical pitchesrange	21kinds 44D.P.
Module pitches range	18kinds 0.3-3.5M.P.
Dia.of tailstock sleeve	50mm(2")
Travel of tailstock sleeve	120mm(4-3/4")
Morse taper of tailstock sleeve	No.4 Morse
Cross adjustock	±13mm(±1/2")
Power of main motor	2.2/3.3kw 3PH	5.5kw 3PH
Power of coolant pump	120W/3PH	120W/3PH
Overall dimension(L×W×H)	1940/244×850×1300)mm
Packing size(L×W×H)	2060/2560×900×1640)mm
Net weight/Gross weight	1160/1350 1340/1565kg

Product Details
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Information
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
