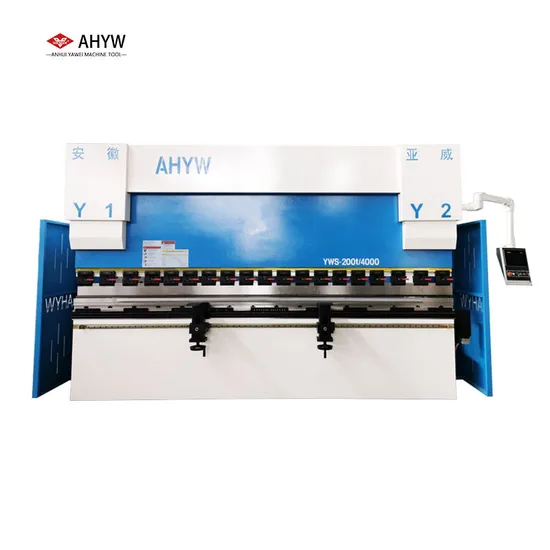

Ahyw 4000mm Servo Pump Controller Metal Bending Machine CNC Press Brake

Product Description

Products Description ANHUI YAWEI YWS SERIES CNC HYBRID PRESS BRAKE AHYW CNC Press Brake controller can calculate the needed pressure for bending specific profiles automatically,
CNC will give command to servo motor&drive reach required rotation speed with needed oil flow to complete one bending cycle using speed variable motor-pump unit; while two units linear scale monitor ram position in real time and feedback to CNC constantly. Variable motor-pump only working if press bending, almost stop when in standby stage and material handling stage.

No.	Item	Unit	YWS 200T 4000 DA53T
1	Pressing Force	KN	2000
2	Motor Power	KW	15
3	Machine Size	mm	4600*2000*2670
4	Weight	KG	13100

Customer Benefits • Reduced cycle time at same speeds
• Eco-friendly
• Running silently, fully noiseless
• Ease of application&maintenance
• Less of oil consumption
• Less of electricity consumption
• Accurate
• Oil don't heat up
• Higher bending efficiency
• Lower cost than full electrical press brake machine
Machine Block
YWS series cnc press brake features a rigid frame for minimum deflection under the load. Machine welding is made by welding aparatus & welding robots. After the welding,we make stress relief process by vibration system. After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy. All referance surfaces and connection holes are machined. By all this processes machine frame sensivity is protected for a long life time.
Hoerbiger ePrAX Electro Hydraulic Hybrid System
This system is the consistent further development of servo driven press brake systems from HOERBIGER. Hybrid press brake machine using one variable speed servo motor pump to drive&control real position and bending pressure in time.
CNC Backgauge
AHYW press brake are provided are equipped with a backgauge constituted by a solid structure in order to assure the best repetitiveness and high precision in axes positioning.
Mechanical Quick Clamps
Using mechanical fast clamp for upper dies, changing dies more convenient and safe. 42Crmo Toolings The press brake dies are made by 42Crmo steel, and the temperature of heat treatment up to 42~50°, ensuring the die service life.
German Hoerbiger Hybrid System
AHYW Hoerbiger ePrAX hybrid system mounted directly on top of Y1&Y2 cylinders; valves, pump, servo drive and oil tank are compactly integrated in the ePrAX.
Germany Brand Servo Pump
Using Germany Brand Servo Pump guarantees real-time control over motor speed, reduces idle work, achieves the energy saving, high
efficiency and stability.
Dual Linear Guide
Dual linear guide for CNC Press Brake fingers stops movement.
Servo Motor
With strong over-load capacity of servo motor, machine can get faster bending & returning speed with the same pump and valves.
Ball Screw & Linear Guide
Adopting HIWIN ball screw and linear guide to improve the machine backguage accuracy.
Packing&Shipping Company Profile Anhui Yawei Machine Tool Manufacturing Co.,ltd. was founded in 2005, the registered capital is 61.88 million, with 300 employee, floor space about 49999 square meters, the location is close to Nanjing Airport and near to Shanghai city.
We specializes in manufacturing and selling CNC Hydraulic Press Brake Machine, Hydraulic Shearing machine, CNC Fiber Laser Cutting Machine, CNC Robotic Arm, with over 120 different types. Our machines, which adopt advanced technology, have a high quality. The main electrical parts, hydraulic parts and the instrument of our machines are adopted the best products made by the famous manufacturer in the world.
We have passed ISO9001 quality system certification and the European Union CE certification, etc., at the same time established a perfect market service system and the system of the mature. Based on the good quality and top technology on our machines, we sell well in various countries and regions over 100 in the world such as U.S.A, Canada, Europe, South American, Middle East, and Southeast Asia market. We have more than 40 years of manufacturing and sales experience in the industry.
We also make OEM machines for our European Agent, all of the configuration on the machines will according European standard and approved by customer satisfied.
Advanced technologies, scientific management, wonderful products and approving service are kept on which we aim at.
We want to cooperate with you to promote our sales and build a long-term cooperation with you for future business.
Best wishes for you and hope a better tomorrow for all of us!
Facilities & Equipment 8m CNC large boring&milling machines 12m Large CNC 5 Axes Machining Center Heat treatment for main frame of Sheet Metal Machinery Contact Us
Anhui Yawei Machine Tool Manufacturing Co., Ltd.
Add:Bowang Industrial Park, Ma'anshan City, Anhui Province, China

---
