Product Details
Product Description
Product Description
SpecificationsMagnesium Ingot 99.9% 7.5KG
Mg 99.90%min Si 0.025%max
Al 0.02%max Fe 0.04%max...
Mg 99.9
Magnesium Ingot/Pure Mg Ingot/Magnesium alloy ingot
1) Characteristic of Magnesium: The density is 1.74g/cm3,equals 2/3 of aluminum,2/5 of titanium,1/4 of steel. it can be machined faster. It has the high comparative strength and comparative rigidity in the commonly used structural metals. It has excellent dimensional stability, thermal and electricity conductivity, magnetic shielding performance. It has excellent damping capacity and low inertia which makes it a good choice for parts which undergo frequent and sudden high-speed changes in the direction of motion.
2)Spec.; 7.5±0.5 Kg/p, as per customer demand for processing special ingot.
3) Quality Standard
Grade
| chemical composition%
|
Mg
| Fe
| Si
| Ni
| Cu
| Al
| Cl-
| Mn
| Ti
| Total Impurity
|
| 99.99
|
|
|
|
|
|
|
|
|
|
Special grade
| 99.96
| 0.004
| 0.004
| 0.0002
| 0.002
| 0.006
| 0.003
| 0.003
| --
| 0.04
|
Mg1
| 99.95
| 0.004
| 0.005
| 0.0007
| 0.003
| 0.006
| 0.003
| 0.01
| 0.014
| 0.05
|
Mg2
| 99.90
| 0.04
| 0.01
| 0.001
| 0.004
| 0.02
| 0.005
| 0.03
| --
| 0.10
|
Mg3
| 99.80
| 0.05
| 0.03
| 0.002
| 0.02
| 0.05
| 0.005
| 0.06
| --
| 0.20
|
4)Application of Magnesium:
a) Alloying with aluminum - 40 45%
b) As a structural metal in die casting - magnesium alloys - 33 35%
c) Iron and steel processing - desulfurization - 13 %
d) Rare-earth alloy, Metal reduction and others.

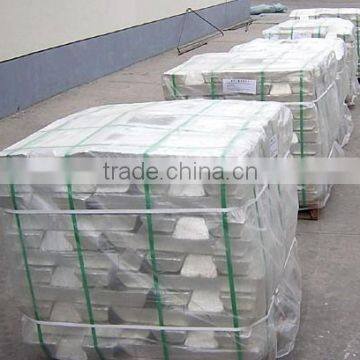

5) Product packing: 1MT on Magnesium or wooden pallet with wraping plastic film or Ton casing.
6) Ingot weight: 15kgs, 7.5kgs, 1kg, 300g.
7) Capacity: 20-26MT/20'FCL
>>
