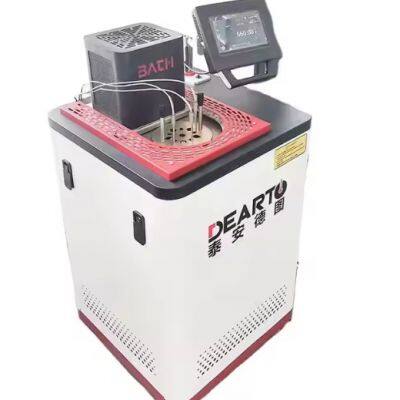

| DTW high-temp. precision salt bath is a new product developed according to the user's requirements for on-site calibration. It has the same structure as the standard oil bath used in the laboratory. It provides users with an accurate high-temp. heating source and is suitable for industrial sites and laboratories.
|
Product features:n1. Adjustable temperature control rate, free to set the rate of temperature rise and fall.n2. Large capacitive screen intelligent control: intelligent human-computer interaction interface, multi-function window display, easy to control;n3.Temperature control curve real-time display, multi-touch support free panning and zooming.n4.Volatility automatic calculation, time period can be customized settings.n5.Stability tip function, stable state real-time display.n6.Multi-layer composite heat insulation structure design, can effectively block the thermal bridge, to ensure the temperature field stability and volatility.n7.Dual sensor overheating protection, over-temperature automatically cut off the power supply, double safety protection.n8.Support temperature multi-test point calibration, correction function.n9.Support USB, WIFI, WLAN, serial communication function, ergonomic design, temperature control screen using three-axis mechanical cantilever mounting, angle length adjustable.
Technique Data
Product name
| Laboratory calibration bath
| Portable calibration bath
|
Model
| DTW-560G
| DTW-670G
| DTW-560G
|
Temp.range
| 180℃-560℃
| 450℃-670℃
| 180℃-560℃
|
uniformity
| Horizontal
| ≤0.01℃
| ≤0.01℃
|
Vertical
| ≤0.02℃
| ≤0.02℃
|
Stability
| ±0.01℃
| ±0.01℃
|
Power input
| 2.5KW
| 1KW
|
Working area（mm）
| φ140×400
| φ100×200
|
Remarks
| Support customized 500 ~ 850 ℃, 850 ~ 1100 ℃ special
|
>>
