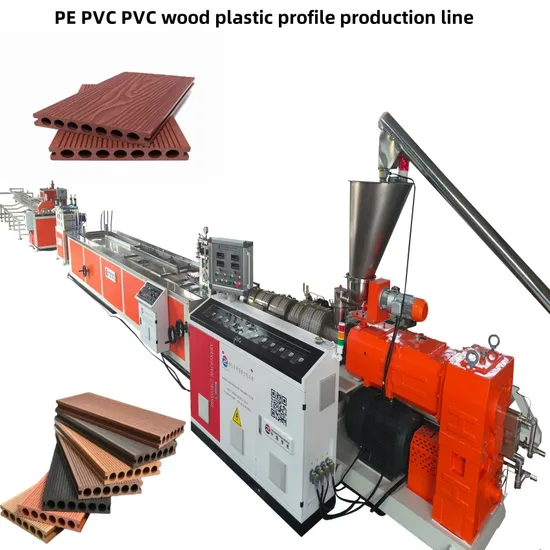

PP PE WPC Wood Plastic Composite Machine/WPC Decking Wall Panel Production Line

Product Description

PP PE WPC Wood Plastic Composite Machine/WPC Decking Wall Panel file Production Line
Product Parameters

Extruder Model	Extrusion output	Main motor power	Screw speed	Barrel Outside cooling	Screw Material	Barrel Material
SJSZ 55/110	120~180kg/h	22kw; AC Motor	38.4r/min	400w×3 wind cooling fan	38CrMoALA and processed by high-temperature nitriding. Nitriding depth:0.5-0.6 Hardness(HV):740-940 Surface roughness≤0.8um	38CrMoALA and processed by high-temperature nitriding. Nitriding depth:0.4-0.7 Hardness(HV):740-940 Surface roughness≤0.8um
SJSZ 65/132	200~260kg/h	37kw; AC Motor	38.4r/min	550w×3 wind cooling fan
SJSZ 80/156	300~450kg/h	75kw; AC Motor	40 r/min	550w×5 wind cooling fan
SJSZ 45/30	30~40 kg/hr	18kw; DC motor	100r/min	150w×3 wind cooling fan

Frequency	Reducer structure	Reducer	Extrusion center height	Bearing and oil tight and other standard components
Main Dring Motor Control by Inverter; ABB brand	Integral type	Gear and the component of the axle are made of alloy steel. Gear has been processed by nitriding, quenching and grinding. The accuracy of gear is ISO6. The hardness of the gear surface is HRC56-62.	1050mm or according to customer's requirements	Adopt the premium brand products, The whole machine with the features of high working, compact structure, run smoothly, low noise and efficiency

PP PE WPC wood plastic composite machine/WPC decking wall panel production machine line Our Qingdao ZhongRui Plastic Machinery is specialized for making kinds of PP/PE/PVC WPC wood plastic composite machines for more than 24 years. We developed advaced technology.To offer customer high quality machine and good after-sale service. Our main products: (1)PP/PE WPC wood plastic composite WPC profile making production machine for making outdoor WPC decking,fence, post, pallet, flooring, chair ,house wal panel etc.
(2)PVC/UPVC WPC wood plastic composite WPC profile making production machine for making window and door profile making machine, wall and ceiling panel etc.
(3)PVC/UPVC WPC wood plastic composite WPC door panel making production machine for making door panel and door board.
(4)PVC/UPVC WPC wood plastic composite WPC foam board making production machine for making celuka foam board.
MACHINE FEATURES: Conical Twin Screw Extruder:
Adopting specially screw designs according to different materials make the high polymer micro-foam uniform plasticization, high extrusion. Imported famous brands AC inverter makes the rotation speed stable to ensure the main extruder and accessory machines move synchronously.
Vacuum calibrating table:
Adopts powerful turbo cooling system, easy to achieve satisfactory cooling effect. According to different moulds and different customer requirements, the vacuum calibrating table can be optional as 4m, 6m.
Haul off machine:
Adopts special lifting technology, and has the features of stable running, reliable working, powerful hauling etc,
Cutting machine:
the moving speed of the cutting unit is synchronized with hauling speed. Through prseting,the cutting unit is capable for automatic cutting with fixed length. Dust recycling device is also equipped.
PRODUCTION PROCESS FLOW Raw materials--- Mixing --- Feeding --- Extruding ---Molding --- Calibrating --- Haul-off --- Cutting--- Stacking--- Printing or Hot stamping(optional) --- Package.
Features: 1.World famous brand inverter--ABB, stable and reliable.
2.World famous brand contactor--Schneider, reliable performance.
3.World famous brand temperature controller--Omron, precision temperature control, reliable and durable.
4.Automatically low power consumption: minimum total production line consumption is 25kw/hour.
5. Economical price, which is suitable for large scale investment.
6.High speed, double output than common WPC PE Profile Making Machine, greatly decrease the labour cost and electricity cost and manage cost.
7.Extruder adopts PVC ceiling dedicated screw, make sure best plastisizing effect
8.Extruder speed and haul off speed controlled by ABB frequency converter, saving power and easy adjusting speed
9.Extruder temperature adopt PID control, temperature fluctuation self adjusting, it realize the high automatic level
10.The caco3 filler can up to 300phr, formula cost is greatly reduced.
11.Equipped with infrared tracking device which can eliminate the problem of fluctuation of extrusion flow rate, further can make sure get best product
12.Lower power consumption,it can save 25-30% electrical power consumption comparing with most kind PVC ceiling production line.
13.With online hot stamping, easy operation, saving labour.
Deliver goods:
Auxilary Machine: 500L Mixer Electric voltage condition:AC220V±10% 50Hz 3P+E Compressed air:0.4~0.6Mpa G.(DP≤10ºC) Cool off water: ≤15ºC 0.3~0.4Mpa 90L/min
Output: 450-500kg/ Power: 55K/75KWtwo speed power
heating method: /self-friction
Temperature control type: RKC/RKC Thermometer
Material of pot cover: The aluminum metal alloy casts
pot cover start&stop control: air control
putout control: air contro
FAQ
Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the payment way?
A2:T/T,L/C at sight or Made in China trade assurance.
Q3:If you will send engineer coming to our factory to install and test the machines?
A3:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q4:If you have CE,SGS,ISO certificate?
A4:Yes,except these,if you also need other certificates,we also can help to apply.
Q5:If we buy your machines, can you offer us wear-out spare pats?
A5:Yes,We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q6:What is the voltage?
A6 380V 50hz 3 phase or any other voltage according to client's requirement.

---
