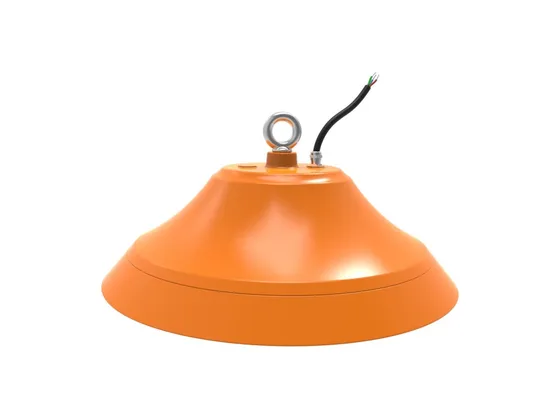

Orange Food Grade High Bay 170lm/W 60W/80W/100W/120W/150W/180W/200W NSF LED High Bay Light

Product Description

Best choice for food processing plant, crude or oil refinery factory, slaughterhouse, cold storage, winery plant, bread factory, milk processing plant, meat processing plant
It is a definitely new-fashioned LED high bay light, which can be used as a normal LED high bay, covering applications such as warehouse, shopping mall, exhibition centers,etc.
Especially, it can be installed in those applications having special requirements on safety and daily cleaning, like food processing plants
Product Advantages: Special design without screws, No bacterial, dust-free, no greasy dirt, easy to clean
No glass and No exposed screws, avoid dropping glass fragments or screws into food or machinery
A perfect solution for food-processing application
Hosed down frequently for cleaning acceptable
Smooth body, Seamless design greatly diminish dust and water accumulation, Easier cleaning
Die-cast aluminum, scratch and fade resistant, efficient cooling structure
IP67 water spraying, corrosion-resistant and anti-aging
IP69K hot steam resistant
Fresnel lens, Lumen efficacy up to 150-170LM/W, Achieve higher lumen output than ordinary lens
Beam Angle 60° /90°/120° available
Colorful housing optional, black, silver, orange, blue, gray, red
Glare-free UGR<19, Provides Improved Visual Comfort High CRI>80
SAA TUV UL PSE CE, safe and food certificate
Product Description
PF>0.95, CRI >80Ra, THD<15%, UGR<19
Anti-thunder: 4KV
IK Grade: IK10
Surge Protection: 10KV
LED Junction Temperature: ≤65°C
Working Temperature: -40ºC~+50ºC
Humidity: 10%~90%RH
Lumileds SMD3030, 150-170lm/w
Meanwell driver, 100-277VAC, 90-305V, 180-528V also available
Optional Function: DALI, 1-10V dimmable, daylight sensor, microwave sensor
Material: Die-cast aluminium, Optical lens
Ideal mounting height: 8-15 m
Simple and elegant appearance, anodized housing, durable
Unique UFO shape, lighter and smaller, no reflector, saving much freight cost
Wide aluminium plate + large diameter PCB, heat dissipation fast and evenly
One-piece PC lens and high-quality silicone ring for excellent airtight effect, protecting from heavy rain and dust
Certification: , SAA, PSE, UL, cUL, DLC, TUV, GS, CB, SAA, FCC, CE, RoHS
Warranty: 5 years
Technical Specifications
Size: Ф300*H164.8, Ф360*H169, Ф400*185.3MM
LED type: Lumileds SMD3030, LM80 TM21 certified, Up to150lm/W
Driver brand: Meanwell HBG series
Power: 100W, 150W, 200W, 240W
PF>0.95
CRI> 80
Material: Die-cast aluminum, PC lens
Working voltage: 100-277V
Luminous Efficiency: 150-170LM/W
Color temperature: 3000K, 4000K, 5000K, 6000K, 6500K
Beam Angle: 60 /90/120°
Dimmable: 0-10V dimmable
Surface color: black, white, silver, orange, yellow, blue, gray, red
IP Rating: IP67
Life-span: 50, 000 hours

Power	100W	150W	200W	240W
Power consumption	100W±5W	150W±5W	200W±5W	240W±5W
Input Voltage	AC100-277V	AC100-277V	AC100-277V	AC100-277V
Power Frequency	50-60Hz	50-60Hz	50-60Hz	50-60Hz
Output Voltage	DC28.8-48V	DC28.8-48V	DC28.8-48V	DC28.8-48V
Output Current	2A(Constant Currrent)	3.3A(Constant Currrent)	4.8A(Constant Currrent)	5.0A(Constant Currrent)
Luminous Flux	13500LM(CCT=5000K)	22500LM(CCT=5000K)	27000LM(CCT=5000K)	27000LM(CCT=5000K)
Fixture Material	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum
LED Type	Lumileds SMD3030
PowerSupply	MeanWell
System Efficacy	150-170LM/W (CCT=5000K)
CCT	4000K, 5000K, 5700K, 6000K, 6500K
Beam Angle	60 /90/120
CRI	>80Ra
System Efficiency	>90%
LED Junction Temperature	<75ºC(Ta=30ºC)
Storage Temperature	(-40~+70ºC)
Operating Temperature	(-30~+50ºC)
Working Environment	15-90%RH
Power Efficiency	>93%
Power Factor	>0.93
Total Harmonic Distortion	<15%
Luminaire Net Weight	3.2kg	4.2kg	5.5kg	6.5kg
Package Size	300*164.8mm	360*169mm	400*185.3mm	400*185.3mm
Certificates	, SAA, PSE, UL, cUL, DLC, TUV, GS, CB, SAA, FCC, CE, RoHS
Life span	>50000Hrs(Ta=30ºC @L70)
Ingress Protection	IP67
Quality Warranty	5years
Installation	Lifting, Tube, Wall Installation

Installation: Loop & Hook hanging / Wall mount / Surface mount / Rack mount
Applications
Ideal for for food processing plant, crude or oil refinery factory, slaughterhouse, cold storage, winery plant, bread factory, milk processing plant, meat processing plant
User Manual:
Switch off power of the mains supply or respectively of the connection lead before doing any works.
Assembly must not damage or destroy conducting paths.
Make sure that the product is mounted on a stable, even and tilt-fixed background.
The complete installation must be done by an electrical expert who is familiar with the valid directives.
Quaity Control:
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box
