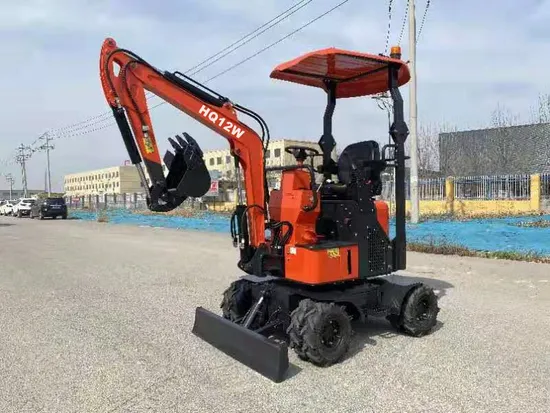

1.2ton Mini Wheel Excavator (HQ12W) with CE Jg08s Mini Wheel Excavator

Product Description

1, HQ12W Mini Wheel Excavator Features :
1. Koop engine , meet CE and Euro5 standard
2. Close cabin, Keep away from the cold wind
3. Powerful digging power, one machine is equivalent to the workload of three people 4. Super Power
5. Saving Energy and Protecting Environment
6. easy to maintain
7. extensive use, designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse, digging trench
8. Standard configuration: one standard bucket 380mm & canopy
9. Optional accessory: narrow bucket 200mm, plain bucket 500mm and 800mm, ripper, rake, auger, break hammer, quick hitch and thumb
10.Engine: Changchai, KOOP, LCT, BRIGGS&STRATTON
We are a professional factory specializing in the production of small excavators with 0.8T, 0.9T, 1T, 1.5T, 1.6T, 1.8T, 2T, 2.2T, 3T, 3.5T and Wheel/Clawler excavator with 7T and 8T.
2, Specifications :

Model	HQ12W
Dimensions
Wheelbase	1400mm
Platform Ground Clearance	380mm
Platform Back Turning Radius	733mm
Chassis Width	1300mm
The height of front wheel	500mm
The height of rear wheel	500mm
Overall width	1300mm
Transport Length	3200mm
Overall Height	2200mm
Operating Range
Max. Digging Radius	2400mm
Max.Digging Depth	1600mm
Max. Digging Height	2490mm
Max. Digging Dumping Height	1750mm
Max. Vertical Digging Depth	1320mm
Min. Rotation Radius	1190mm
Max. Upgrade Height Of Shovel	325mm
Max. Digging Depth Of Shovel	175mm
Overall Weight	1200kg
Bucket Capacity	0.02m³
Engine	KOOP 192/KUBOTA 722
Engine Type	Single cylinder Air-Cooled/Three cylinder Water-Cooled
Rated Power	7kw/10.2KW
Emission Standards	Euro 5 emission standards
Operating Type	Hydraulic pilot operating system

3, Advantages introduction :
4, Professional Loading and Packing
5, Exhibitions of Haiqin Machinery
6, Certificate of Haiqin Machinery
7, MORE PRODUCT CATEGORIES OF HAIQIN MACHINERY
8, Warranty and Service.
HAIQIN machine has One Year Warranty.
During Warranty, if there is any part broken because of quality problem (except
easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.

Choose HAIQIN, and then better after-service will be guaranteed.

Contact us right now for more information! Online 24 hours a day!

---
