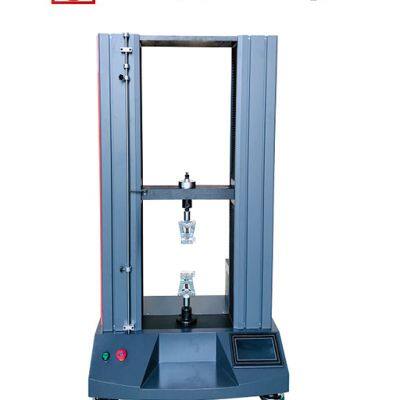

Model LDD Series Digital Display Touch Screen Electromechanical Universal Testing Machine

Product Description

Product Description
Application:
This kind of machine is widely used in metallurgy, machinery, building engineering and materials, automobile, and shipping industry, college, university, and quality assessment department, which can test the mechanical performance of metal, plastic, rubber, spring, all kinds of rope materials and other materials. It can meet global standards, such as ASTM, DIN, BS, JIS, GB, etc. It uses touch screen LCD controller to control machine.
LDD Series Main Specifications:
Model
LDD-10
LDD-5
LDD-3
LDD-2
LDD-1
LDD-0.5/0.2/0.1/0.05
Max. Load
10KN
5KN
3KN
2KN
1KN
0.5/0.2/0.1/0.05KN
Load accuracy
≤±1%
Load range
2%-100% of full scale
Test speed
0.1-500mm/min
Speed accuracy
≤±1%
Disp. resolution
0.01mm
Tensile space
600mm
Compression space
600mm
Test width
400mm
Dimension
650×450×1300mm
Power supply
220V, 1ph, 0.5KW
Weight
120KG
Grips
Wedge type, plate type and other grips as consumer’s demand
Load frame type
Double column
