Electric Mini Excavator with Anti-Explosion Function, Special for The Excavating and Clearing Work in Roadway, Shaft, Inclined Shaft of Underground Mine.

US$18,000.00-22,500.00 1 Piece (MOQ)

Basic Info.

Type
Electric Excavator
Usage
Special Excavator, Mining Excavator
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, Ma
Condition
New
Transport Package
Naked
Trademark
Kuangan
Origin
Shandong
Production Capacity
180/Year

Product Description

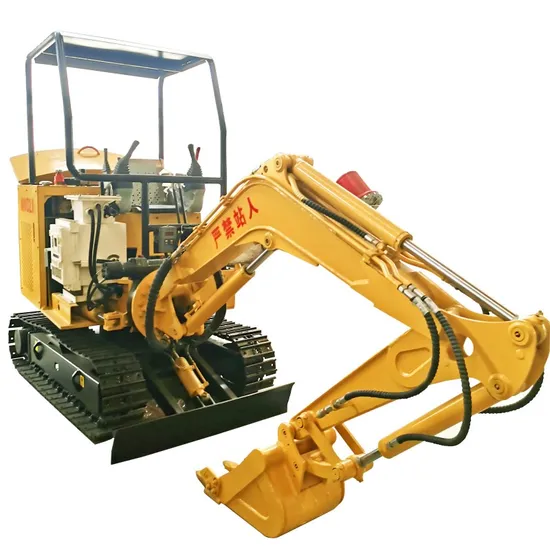

China Electric Mini Excavator for mining use
MWD20.12L Electric powered hydraulic excavator 2 ton is researched, developed and manufacturered by Shandong Kuangan Heavy Industry Co., LTD., special for underground rock loading, roadway bottom clearing and so on. It is featured with compact size, explosion proof electrical system, stable and high-efficiency hydraulic system, energy saving, low noise, low pollution.
With shaft drilling rigs, it can realize mechanized operation of shaft tunneling in coal mines and other mines, thereby greatly increasing the speed of tunneling. At the same time, the machine can also be used for rock loading and excavation operations in flat and inclined roadways. This machine is suitable for the excavation of rock loading, bottom clearing and frozen soil layer in the shafts, flat roads and inclined roads with a slope of less than 14° in coal mines, metal mines and non-metal mines.
Serial number Item unit Model
MWD2.0/0.12L
1 Total Weight t 2.2±0.2
2 (Length×Width×Height) mm 2780×1200×2620
3 Electric motor Rated power kw 18.5
Rated voltage v 380
Rated speed r/min 1480
4 Hydraulic system parameters Working pressure MPa 24±0.2
Maximum flow of hydraulic main pump L/min 46±2
5 Machine performance parameters Gradeability (±º) ±20
Ground pressure MPa ≤0.05
Walking speed Km/h (0-2.7) ±0.2
Digging power KN ≥20
6 Wroking range A: Maximum digging radius mm 3900
B: Maximum digging depth mm 2100
C: Maximum boom height mm 3500
D: Maximum unloading height mm 2650
E: The minimum turning radius of the back arm mm 1630
