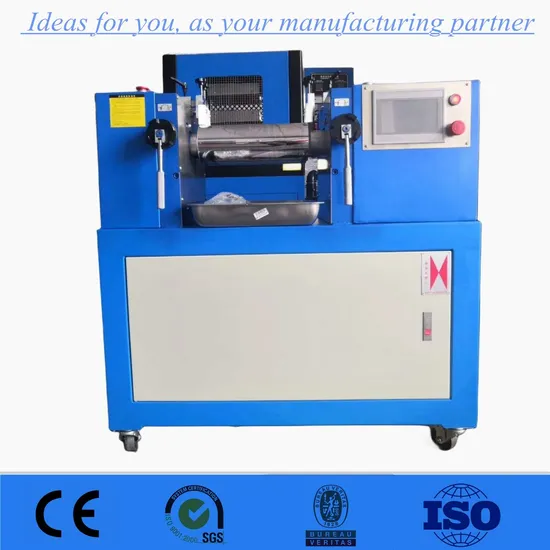

Two Roll Open Mill Lab Open Mix Mill

Product Description

Product Description Introduction to the opening mill: Open mixer is the abbreviation of open rubber mixing machine. It is a type of rubber mixing machine with exposed rollers used in rubber and plastic factories to prepare plastic rubber, mix rubber, or perform heat refining and molding. Its main working components are two hollow or drilled rollers that rotate inward in opposite directions. The device on the operator's side is called the front roller, while the rear roller is fixed and cannot move forward or backward.

model	ZG-400LD	ZG-360L	ZG-300L	More models (Support customization)
Mixed capacity	3-40kgs	2-30kgs	2-20kg
Heating method	frictional heating
Drum speed	Single frequency conversion andsingle speed regulation (1 30kwfrequency converter)	Fixed speed (variable frequencyspeed regulation can be addedaround 19 revolutions, and otherspeeds can be customized)	Fixed speed around 19 revolutions
Drum speed ratio	1:1.35	1:1.35 (0ther speed customization)	1:1.35
Drum size	ф400mmXL1100mm	ф360mmXL910mm	ф300mm×L720mm
Drum spacing	0.1-16mm adjustable		0.1-15mm adjustable
Protective devices	Multiple touch emergency stops (with reverse function, userfriendly design, and no work-related injuries for operators)
power	30KW	18.5KW	15KW
volume	(WxDxH) 3600X1480X2350mm	(WxDxH) 2800X1280X1580mm	(WxDxH) 2900×1180×1680mm
Roller lubrication	The excellent wear-resistant bearing has a large contact area.Extends the service life by two-thirds compared to traditional
source	5∮,AC380V
weight	3800KG	2600KG	1600KG

Specification
Customization of multiple styles and models
Company Profile
Packing & Delivery Export wooden package
Package and Shipping -The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one
based on your timeline and budget. Besides,you can choose to use your own shipping agent

---
