Chinese Professional Transformer Cutting Machine Silicon Steel Cutting Equipment

Product Description

Chinese Professional Transformer Cutting Machine Silicon Steel Cutting Equipment
I.Cutting Tool Machinery Introduction:
CNC Silicon Steel Sheet NC Transverse Shear Line is the dedicated equipment for processing the transformer cores. This machine adopts PLC control, touch screen display, and servo shearing. Press the start button after selecting the cutting type, input the cutting size and cutting number, and the equipment will automatically conduct production and when it is completed the setting amount, it will stop productions automatically.
II.Equipment Main Technical Parameters

Item	Parameters
Model	SKJ-300	SKJ-450	SKJ-600	SKJ-800
Shearing thickness	≤0.35mm
Shearing width	40~300mm	40~450mm	60~640mm	60~800mm
Shearing length	340~1500mm	300~2500mm	600~3500mm	600~4500mm
Punching aperture	customized
Feeding speed	240m/min
Shearing accuracy	±0.1
Shearing angel accuracy	±0.01°
Shearing burrs	≤0.02mm
Outer diameter of coiled material	≤Φ1000 mm No more thanΦ1000mm
Coil I.D.	Φ500mm
Weight of material	≤1300Kg	≤2000Kg	≤3000Kg	≤3600Kg
Spindle telescoping range of decoiler	Φ470~Φ520 mm
Carried material table height	≤200mm(Containing material platform)	≤200mm(Containing material platform)	≤250mm(Containing material platform)	≤250mm(Containing material platform)
Positioning mode	Cetral positioning with automatic witdth control
Discharge direction	Longitudinal
Total power of motors	21Kw	21Kw	33Kw	36Kw
Floor space	12500×4370mm	13500×4500mm	17500×6000mm	20000×7000mm
Total weight	8000Kg	10000Kg	16000Kg	20000Kg

III.Machine Shearing Shape
IV.Machine Stepping

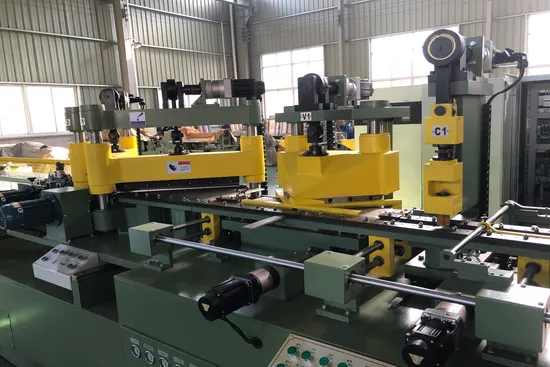

V.Equipment Details Photo:
VI. Contact Information

---
