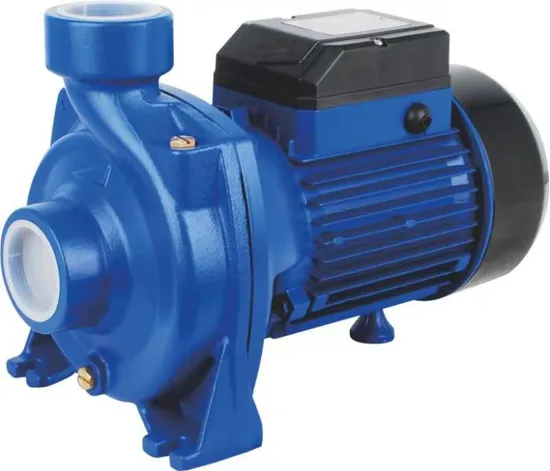

Hfm Series Big Flow Single Impeller Centrifugal Electric Water Pump

Product Description

Product DescriptionThese centrifugal pumps are single stage pump,suitable for both domestic and industrial applications to convey clean liquids and non-aggressive chemical fluids. The hydraulic characteristic is with higher head and smaller capacity .
*Pump body :cast iron
*Pump support : cast iron
*Motor housing :Aluminum Alloy
*Impeller:Brass
*Motor shaft :carbon steel (304ss if request)
*Mechanical seal : Ceramic / Graphite
*Liquid Temperature up to 60 ºC
*Ambient Temperature up to 40 ºC
*Total Suction lift up to 9 m
*Insulation Class B
*Production :IP44
*Cooling:External Ventilation
*With Thermal Protector
*Continuous Work S1
Detailed PhotosCompany ProfileZhejiang Juren Electric Motor Co., Ltd is a professional manufacturer with its own export right. We focus on the development and production of AC electric motor & deep-well submersible pump for more than 20 years. Our products include a wide range of ac single phase electric motor, three phase electric moitor, 3SDM series, 4SDM series, 4SS series deep-well submersible pump, air compressor spare parts, multi-function brushing machine series, we have set up four workshops, metalwork, motor, rotor and assembly, and also have established pipelining operation from the pump body casting processing, motor embedded, rotor punching to assembly and the product testing. Our products are exported to many countries always provide excellent quality products and best service to customers.

---
