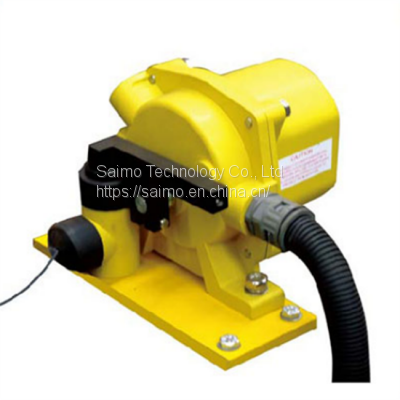

PL50 Belt Damage Detector
PL50 Damaged Belt Detector warns supervisory personnel of impending belt failures due to rips, punctures, splice failures, or sharp objects protruding through the belt fabric.
Belt Damage Detectors mount in pairs positioned on either side of the belt. The units are connected by two spans of aircraft cable. One end of the cable mounts permanently to a support bracket and the other connects to a spring-loaded ball located in the unit. The cables loop underneath the belt from each side crossing at the midpoint. A belt problem is detected when an object or a piece of damaged belt hangs below the belt's surface and sweeps away one or both cables. As the cable is detached, it pulls a spring-loaded ball out of a socket, causing two micro switches to sound an alarm or to shut down the conveyor.
|
Features
Simple and reliable construction requiring no maintenance
Universal casing design, easy for installation
Cast metal enclosure features an anti-corrosive finish
Integral cover for easy access for wiring terminals and adjustable settings
Large capacity switch contacts
Applications
Belt conveyor
Technical Specifications
Output: 2 SPDT
Protection class: IP65
Force: 2kg
Weight: 5.6kg
Outline dimensions: 250(L)mmX265(W)mmX281(H)mm
Saimo Technology Co., Ltd
2# Luoshan Road, Xuzhou Economic Zone,
Jiangsu province, P.R of China
Mobile: 18061139050
wechat:396914510
Website：
Email: zouli@saimogroup.com
>>
