200tph Short Head Cone Crusher for Sale

Product Description

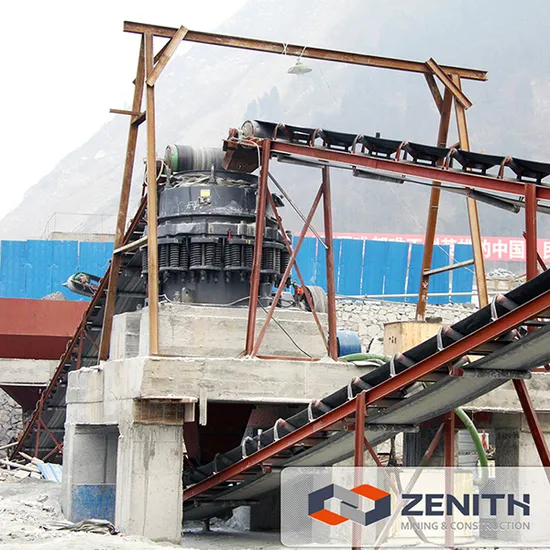

200tph Short Head Cone Crusher for Sale

The Short Head Cone Crusher is designed to crush high or medium hardness material, such as iron ore, copper ore, limestone, quartz, granite, etc. and is normally used as second or third crushing equipment in metallurgy, road construction, chemical engineering and so on. There are mainly standard type and short-head types according to different discharge size. This series offers the highest crushing efficiency and final product quality with the lowest cost so that they are well received by the customers.
According to customer's requirement, our company designs high-performance crusher, S Series High-efficiency spring Cone Crusher.
This Short Head Cone Crusher concentrates on the speciality of high-frequency, optimization of cavity-type, reasonable stroke and bases on the advanced technology introduced abroad, follows the conception of laminated crushing principle, more crushing and less grinding.
Short Head Cone Crusher Main Features:
1. High quality and productivity.
2. Less machine stop time.
3. Easy maintenance and low cost.
4. Unique crushing ability in primary, secondary and tertiary crushing.
Short Head Cone Crusher Working principle:

The working parts are two cutter haeds, also called cones; one is fixed cone ( also called outer cone), the other one is movable cone ( also called inner cone. The outer cone is fixed, which is one part of frame; the movable cone is pluged freely in the eccentric bush, so the central axis between the fixed cone and the movable cone intersects and forms into a bevel. When rotating, the movable cone rotates along the inner suface of the fixed cone. The place that the movable cone pressed against the fixed cone becomes the crushing cavity, where the materials is pressed, impacted and bent by the movable cone. The place that the movable moves away from the fixed cone becomes the discharging open, where the crushed materials is discharged out under the role of gravity, and the materials are sent from the feed open.
Short Head Cone Crusher technical data:

Model	Movable Cone Diametermm (inch)	Chamber Style	Opening Side	Closed Side	Discharging Opening (mm)	REV (r/min)	Power (kw)	Motor Model	Capacity (t/h)	Machine Size (mm)
			Max.Feeding (mm)
36(3′)	900 (3')	Medium	83	102	9-22	580	6-75	Y315S-6/75	45-91	2821×1880 ×2164
		Coarse	159	175	13-38				59-163
36(3′)	914 (3')	Fine	13	41	3-13	580	6-75	Y315S-6/75	27-90	2821×1880 ×2410
		Medium	33	60	3-16				27-100
		Coarse	51	76	6-19				65-140
51(4.25′)	1295 (4 1/4')	Fine	109	137	13-31	485	6-185	Y355M2-6/185	109-181	2800×2342 ×2668
		Medium	188	210	16-31				132-253
		Coarse	216	241	19-51				172-349
51(4.25′)	1295 (4 1/4')	Fine	29	64	3-16	485	6-160	Y355M1-6/160	36-163	2800×2342 ×2668
		Medium	54	89	6-16				82-163
		Coarse	70	105	10-25				109-227
66(5.5′)	1650 (5 1/2')	Fine	188	209	16-38	485	6-240		181-327	3911×2870 ×3771
		Medium	213	241	22-51				258-417
		Coarse	241	268	25-64				299-635
66(5.5′)	1650 (5 1/2')	Fine	35	70	5-13	485	6-240		90-209	3917×2870 ×3771
		Medium	54	89	6-19				136-281
		Coarse	98	133	10-25				190-336
84(7′)	2134 (7')	Fine	253	278	19-38	435	6-400		381-726	5200×4300 ×4700
		Medium	303	334	25-51				608-998
		Coarse	334	369	31-64				870-1400
84(7′)	2134 (7')	Fine	51	105	5-16	435	6-400		190-408	5200×4300 ×4700
		Medium	95	133	10-19				354-508
		Coarse	127	178	13-25				454-599

---
