600X900mm 2.2kw Small CNC Wood Router for Wood Plastic Acrylic Cutting

Product Description

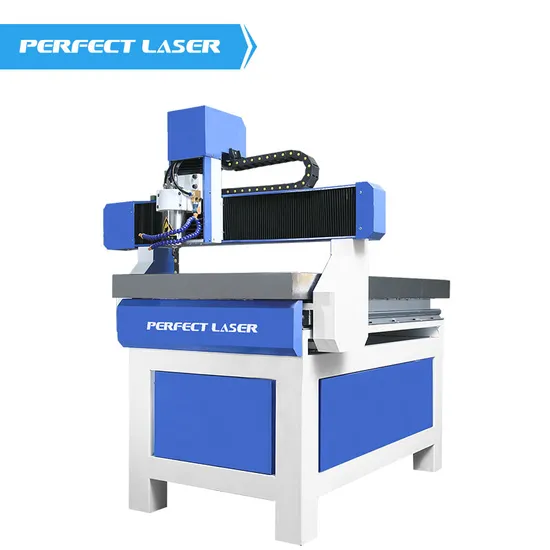

600X900MM Small CNC Router Engraver Machine for Wood
(Model: PEM-6090W)
Contact: Emily Product Description
Description:
Our CNC Router Engraver Machine is designed with pure Aluminum, which ensures parallelism, verticality, and concentricity and greatly increases the precision and speed of the engine bed. It is applied in cutting of kneading board of large size and the making of large-scale relief and label. The size of the machine is calculated and customized according to optimization rules in market Statistics. It covers the main sizes of marks and labels in the market. It can cut through plexiglass with the thickness of 20mm one time without trouble and can be applied to large-scale relief, too. It is doubtlessly a perfect product in the range of advertising. Sample & Applications

Main Features
Special Features
1) X, Y, Z axis use imported ball bearing guide screws. It's with high precision and fast speed. Even the letters of 1mm can be clearly discernible. The small-power machine uses a large-power main axis, it's an ideal product for manufacturing labels, construction models, and molds in batches.
2) Advanced DSP digit-control system, handle operation and large liquid crystal display brings out more convenient operation, simpler maintenance, and more human nature on the design of the machine.
3) Steady data transmission. The data transmission uses the technology of ISA/IP DNC/IP straight association, which can associate the machine without interruption, and it has no limitation of the amount of the document.
4) Double-nut guide screw. It uses a Germany-imported high-precision ball bearing guide screw which can
eliminate cracks automatically. Coordinated with the imported shaft coupling, it can realize precise control. It uses a straight-line guide rail (cylinder or square), which can ensure the working life.
5) Large internal memory capacity of 32M is able to store 30 processing files simultaneously and open and process any of them.
6)No dust oiling structure, guarantee the long term running of the mechanical aspect.
7)Breakpoint and break knife continue engraving function, can engrave at any place as you like.
8) High power frequency-changing water-cooled spindle, can process hard materials efficiently.
9) High Compatibility, CAD/CAM software such as Type 3/ Art Arm/ Castmate/ Proe/ Coreldraw/ Art Cut.
10) Connection with the computer via USB interface enables data to be transmitted in a second, supports hot plug and play, no driver installation required(Window98/NT/2000/XP)

Product Parameters

Technical Parameter:

Model No.	PEM-6090
Working area	600*900mm
Power	1.5kw		2.2kw
Table material	Aluminum Alloy table
Maximum feed height	80mm
X,Y, Z Guideway rails type	Round guide rail+ball screw transmission
Max Engraving Speed	4,000-7,000mm/min
Resolution ratio	0.002mm
Repetition accuracy	±0.02mm
Spindle power	2.2kw, 3kw, 4.5kw
Spindle Rotating Speed	6000 - 24,000rpm
Spindle cooling	Water Cooling
Drive motor system	Step Motor and Step Driver
Interface	PCI Port or USB Port
Memory buffer (Flash)	128MB
Engraving Command	G code, u00, mmg, PLT, HPG
Command language system	English Version, Windows 98/2000/XP Operation System
Operational Software	Original Type3 Software, ArtCam software or Wentai Software
Software Compatibility	Support CAD/CAM software, PLT format, Corel Draw, Auto CAD
Working temperature	0-45°C
Relative humidity	30% - 75%
Notice: We can make some adjustments on the price if we know your exact requirements!

Before making the best quotes for you, could you answer the following questions:
* What's your material? (wood, acrylic, plastic, stone, metal, etc)
* What's your material working area?
* Your material thickness?
* Your country port for checking shipping.
* If the price confirmed, when will you place an order? Company Profile
Company information
We, Perfect Laser, As a 21 years history industrial equipment manufacture in the laser field, with CE/ISO/FDA, we aim to make high-quality products, and also our products have been exported to more than 180 different countries and areas.
Welcome to contact us for perfect laser engraving cutting solution
Contact me:
Perfect Laser Co., Ltd. (China)
Contact: Emily / Sales Department
Add: HengRuichuangzhi Technology Park, No.13 YangQiaohu Road, Jiangxia District, Optical Village, Hubei, China(430200).

---
