Automatic Stone Bridge Saw for Marble Granite Slabs Cut-to-Size (XZQQ625A)

Product Description

Automatic Granite Bridge Stone Saw for Processing Counter & Vanity Top
1.Product No.:XZQQ625A
2.Good services and warranty.
3.High power and easily operation.

Product introduction:
Automatic Bridge Saw for cutting granite marble and other stones.
The machine is a popular bridge saw that widely used in trimming and fabricating slab, tile, countertops, etc. It is able to cut 3200mm length and 2000mm width and 175mm thick (126"×78" ×7").
The laser guide and sensors gives high accuracy for the machining tolerance.
The blade travels on the beam and it also provides power tilting 0 - 45 degree for mitre edge trim. The table turns 0 - 360 degree automatically and it also tilts 0 - 85 degree hydraulic for easy load and unload of the material.
This monobloc bridge saw machine is computer control and able to program for up to 99 repeat cuts automatically and also capable of manual operation.
The mechanical body is made of very strong cast iron for stability and long lifetime. It also provides covered oil bath for the movements of bridge rails.

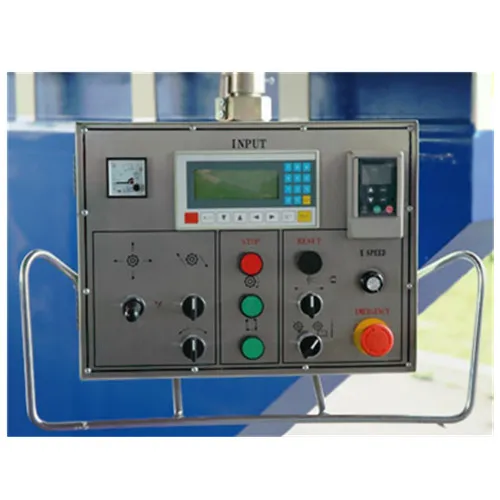

Also all the functions are operated on the control panel that make it very user friendly
Working pictures:
Specification:

Blade size	400 - 625 mm 16" - 25"
Cut length	3200 mm 126"
Cut width	2000 mm 78"
Cut thick	170 mm 6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360°
Table tilt	0 - 85°
Spindle motor	15 Kw 20 HP
Size (L×W×H)	6×5×2.6 m 20'×16'×8.5'
Weight	7200 Kg 16,000 Lbs

Features:
1.Computer control operation
2.Cutting slabs into tiles and cut to size
3.Blade tilting: 45°
4.Table tilting: 0-85°
5.table rotation: 0-360° (stopping at each 45°)
6.Laser guide with wireless remote
7.Spindle Motor:15Kw (20HP)
8.Movements of bridge rails
9.Automatic water control
10.Warranty: one year
11.Longevity:15 years
FAQ:
1, How to pay to you ?
T/T in advance. We accept 30% deposit , 70% before shipment
2, How long is the delivery time?
For standard machines, it would be 2-5 weeks
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
4,How about the documents after shipment?
After shipment, we will send all original documents to you by DHL or Tele-Release
5, How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package
AGA Company:
AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable service. The products include bridge saw,block cutter,polishing machine as well as equipments for other construction stones.The equipments have been successfully exported to world stone market in U.S.A.,Canada, Europe, Mid East, Egypt, India,etc.
AGA understands that machinery creates value for customer and every machine comes from sophisticated technology and is manufactured by dedicated and experienced workers under strict inspection and full test. AGA insists on equipments of high quality and advanced technology to assist customers in their pursuit of a true competitive advantage. our philosophy is all about professional entrepreneurship and perfectly serving our clients and the mission is to help customers because by choosing us you are giving us a chance to make your machine more productive that also make your products unrivaled in the competitive market and we are happy to do that professionally and passionately.
AGA products:
Stone cutting machine, multi blades block cutter, automatic bridge cutting machine, bridge saw, edge cutting machine, edge polishing machine, profile cutting machine, arm polisher machine, splitting machine, pressing machine, stone crusher.

---
