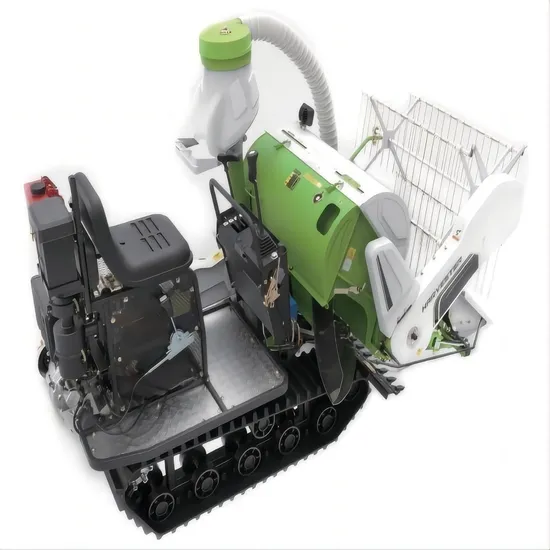

| Model and product name | / | 4LZ- 1.0A small rice combine harvester | ||
| Working structure | / | Full-feed, independent track riding | ||
| Engine | Manufacturer | / | China Changchai | |
| Model number | / | 192F diesel engine | ||
| Engine type | / | Vertical, single cylinder,air-cooled,4-stroke,direct-injection. | ||
| Rated power | kw | 8.2 | ||
| Rated rotating speed | r/min | 3600 | ||
| Overall size(L×W×H) | mm | 2740×1320×1600 | ||
| Net weight | Kg | 580 | ||
| Header width | mm | 1100 | ||
| Minimum ground distance | mm | 200 | ||
| Feeding volume | kg/s | 1.0 | ||
| harvest | ha/hr | 0.06-0.1 | ||
| Theoretic working speed | m/s | 0.4~1.0 | ||
| Working productivity | hm2/h | ≥0.06 | ||
| Fuel consumption | kg/ hm2 | ≤30 | ||
| Cutting blade type | / | |||
| Auger type | / | Spiral auger | ||
| Cutting table lifter type | / | Mechanical hydraulic | ||
| Reel | Type | / | Eccentric spring tooth | |
| Diameter | mm | 600 | ||
| Reel teeth quantity | pcs | 4 | ||
| Roller inside of threshing cabin | Quantity | pc | 1 | |
| Type | / | Axial pin tooth | ||
| Size (Dia.X L) | mm | Φ400×888 | ||
| Minimum turning radius | Left | mm | 700 | |
| Right | mm | 700 | ||
| Type of concaved sieve | / | Steel grid type | ||
| Gearbox type | / | Gears with reverse gear. | ||
| Brake type | / | Tension pulley, outside clutch | ||
| Rice collection way | / | Collect into bags by manual | ||
