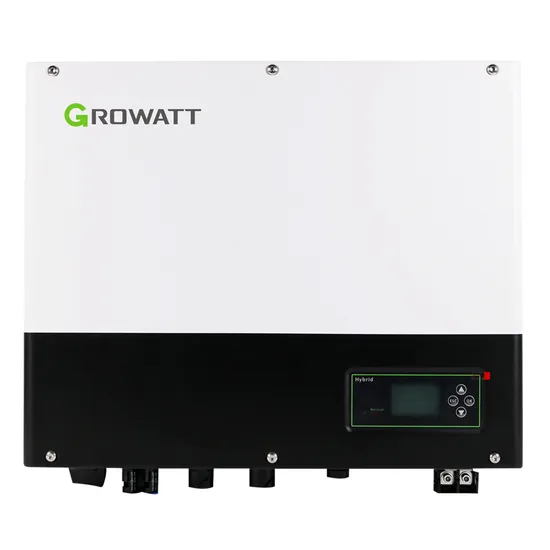

Growatt New Arrival Three Phase Sph 5000 10000tl3 Bh Hybrid Inverter 8kw 10kw Growatt Hybrid MPPT Solar Charge Controller

Product Description

Product Description
Hybrid Inverter
♦High Yield♦High power density, offer lighter and easy installation♦Real Time Monitoring(Flexible communication connection, support RS485, WiFi, GPRS)♦Warranty:5 years/10 years
Hybrid inverter has function of both on grid inverter and off grid inverter. So hybrid solar system has the advantages of on grid and off grid solar system. All equipment is connected to hybrid solar inverter, so the hybrid inverter is the most important device for the system. Product Parameters

Datesheet	SPH4000TL3 BH	SPH5000TL3 BH	SPH6000TL3 BH	SPH7000TL3 BH	SPH8000TL3 BH	SPH10000TL3 BH
Input data(DC)
Max. recommended PV power (for module STC)	5200W	6500W	7800W	9100W	10400W	13000W
Max. DC voltage	1000V	1000V	1000V	1000V	1000V	1000V
Start Voltage	160V	160V	160V	160V	160V	160V
MPP voltage range / normal voltage	160V-1000V / 600V	160V-1000V / 600V	160V-1000V / 600V	160V-1000V / 600V	160V-1000V / 600V	160V-1000V / 600V
Max. input current per MPP trackers	12A/12A	12A/12A	12A/12A	12A/12A	12A/12A	12A/12A
Max. short-circuit current per MPP trackers	15A/15A	15A/15A	15A/15A	15A/15A	15A/15A	15A/15A
Number of MPP trackers/ strings per MPP tracker	2/1	2/1	2/1	2/1	2/1	2/1
Output data(AC)
AC nominal power	4000W	5000W	6000W	7000W	8000W	10000W
Max. AC apparent power	4000VA	5000VA	6000VA	7000VA	8000VA	10000VA
Max. current	6.1A	7.6A	9.1A	10.6A	12.1A	15.2A
Nominal AC voltage/range	230V/400V; 310~476V	230V/400V; 310~476V	230V/400V; 310~476V	230V/400V; 310~476V	230V/400V; 310~476V	230V/400V; 310~476V
AC grid frequency/range	50/60Hz; 45~55Hz/55~65 Hz	50/60Hz; 45~55Hz/55~65 Hz	50/60Hz; 45~55Hz/55~65 Hz	50/60Hz; 45~55Hz/55~65 Hz	50/60Hz; 45~55Hz/55~65 Hz	50/60Hz; 45~55Hz/55~65 Hz
Power factor(@nominal power)	1	1	1	1	1	1
Adjustable power factor	0.8leading…0.8lagging	0.8leading…0.8lagging	0.8leading…0.8lagging	0.8leading…0.8lagging	0.8leading…0.8lagging	0.8leading…0.8lagging
THDi	<3%	<3%	<3%	<3%	<3%	<3%
AC grid connection type	3W+N+PE	3W+N+PE	3W+N+PE	3W+N+PE	3W+N+PE	3W+N+PE
Stand alone(AC power)
Max. AC output power	4000W	5000W	6000W	7000W	8000W	10000W
Max. AC apparent power	4000VA	5000VA	6000VA	7000VA	8000VA	10000VA
Max. output current	6.1A	7.6A	9.1A	10.6A	12.1A	15.2A
Nominal AC output voltage	230V/400V	230V/400V	230V/400V	230V/400V	230V/400V	230V/400V
Nominal AC output frequency	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz
THDv	<3%	<3%	<3%	<3%	<3%	<3%
Switch time	<0.5S	<0.5S	<0.5S	<0.5S	<0.5S	<0.5S
Battery data (DC)
Battery voltage range	160~550V	160~550V	160~550V	160~550V	160~550V	160~550V
Max charging and discharging current	25A	25A	25A	25A	25A	25A
Continuous charging and discharging power	4000W	5000W	6000W	7000W	8000W	10000W
Type of battery	Lithium / Lead-acid battery	Lithium / Lead-acid battery	Lithium / Lead-acid battery	Lithium / Lead-acid battery	Lithium / Lead-acid battery	Lithium / Lead-acid battery
Capacity of battery	5~50kWh	5~50kWh	5~50kWh	5~50kWh	5~50kWh	5~50kWh
Efficiency
Max. efficiency	97.6%	97.8%	98.0%	98.2%	98.2%	98.2%
Euro European efficiency	97.0%	97.2%	97.3%	97.4%	97.4%	97.5%
Battery charge/discharge efficiency	97.4%	97.4%	97.4%	97.4%	97.4%	97.4%

System ConectionThe above illustration shows basic application on of this inverter.
It also includes following devices to have a Complete running system.
- Generator or Utility
- PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner
Packaging & Shipping
ProjectOur products cover various ranges, including residential, commercial and utility-scale solar power systems, solar energy storage systems, and off-grid solar systems, which can meet the different needs of our customers.
♦We keep good quality and competitive price to ensure our customers benefit.♦we have100%test before delivery.♦We are looking forward to your visit.Factory
Growatt is a global leader of smart energy solutions, provides residential, commercial and utility-scale PV inverters, The company is dedicated to becoming the world's largest supplier of smart energy solutions. Growatt has an advanced manufacturing plant in Shenzhen, China. The facility covers an area of 200,000 square meters and has an annual output of 20GW. Growatt is one of the world's top 10 inverter brands. Having its strong competitive advantages in distributed solar, the company is the world's. No.1 residential inverter supplier and it also ranks among the world's top 5 suppliers.
Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(CNF)	30% T/T in advance, paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	Western Union	Amount Lower than 5000usd

FAQQ:What's your payment terms?A:T/T,L/C,Paypal,Western Union etc.
Q:What are the advantages of your company?
A:We are a factory, and we also cooperate with other brands, such as Deye, Longi, JA solar, Jinko, Trina, Canadian Solar etc., to provide customers with better prices and more choices.Q:May I have a piece of sample to check the quality?
A:Welcome to place the testing order to check the quality or for testing.Q:How about the delivery time?
A:15-20 days after receiving your payment.
The specific delivery time depends on the items and the order quantity.Q:Where is the port of loading?
A:Shanghai,Ningbo.Q:Can you do OEM?
A:Yes.

---
