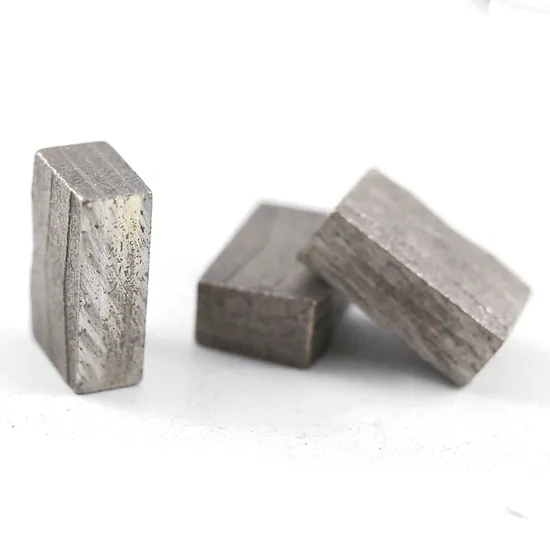

5.5 Multi-Layer Segment for Saw Blade Cutting

Product Description

5.5 Multi-Layer Segment for Saw Blade Cutting
Product Description:
1) high quality, smooth cutting without chip, easy welding, save electric, reduce the stone waste
2) universal wet cutting for different kinds of stone (granite marble sandstone etc...)
3) soft to hard bonds designed for cutting hard to soft materials
4) sandwich or grooved segment with any shapes for single or multi-blade as required.
5) reasonably priced with excellent service and consistent quality.
6) guarantee fast smooth cutting on each stone.
**Attn: Different market need different quality and sizes. We can make all kinds of sizes and quality or price according your requirement. **

Diameter	Inch	Core Thickness	Segment Size	Segment No.
mm		mm	mm	pcs
φ300	12''	2.2/2.0	40*3.0/2.8*8(10)(12)(15)	21
φ350	14''	2.2/2.4	40*3.0/3.2*8(10)(12)(15)	24
φ400	16''	2.6/2.8	40*3.4/3.6/3.8*8(10)(12)(15)	28
φ450	18''	2.8/3.0	40*4.0/4.2*8(10)(12)(15)	32
φ500	20''	2.8/3.0	40*4.0/4.2*8(10)(12)(15)	36
φ450	18''	2.8/3.0	40*4.0/4.2*8(10)(12)(15)	32
φ500	20''	2.8/3.0	40*4.0/4.2*8(10)(12)(15)	36
φ600	24''	3.6	40*4.6*8(10)(12)(15)	42
φ700	28''	4.0	40*5.2*8(10)(12)(15)	42
φ800	32''	4.5	40*6.0*8(10)(12)(15)	46/57
φ900	36''	5.0	24*6.6/6.0*10(12)(15)(20)	64
φ1000	40''	5.5	24*7.0/6.4*10(12)(15)(20)	70
φ1200	48''	6.0	24*8.0/7.4*10(12)(15)(20)	80
φ1300	50''	6.5	24*8.4/7.8*10(12)(15)(20)	88
φ1600	64''	7.2	24*9.0/8.4*10(12)(15)(20)	108
φ1800	72''	8.0	24*9.8/9.2*10(12)(15)(20)	120
φ2000	80''	8.0	24*10.5/9.5*10(12)(15)(20)	128
φ2200	88''	9.0	24*11.5/10.5*(15)(20)	132
φ2500	110''	9.0	24*12.5/11.5*(15)(20)	140
φ3000	120''	10.0	24*13.5/12.5*(15)(20)	160
φ3500	140''	10.0	24*14.5/13.5*(15)(20)	180

Our service:
√ Factory == √ Own exporting license == √ Quality control == √ Competitive price == √ Own technology == √ Oem

---
