10tubes to 36tubes Compact Pressure Stainles Steel SUS201 Solar Water Heater (Hot Sales)

Product Description

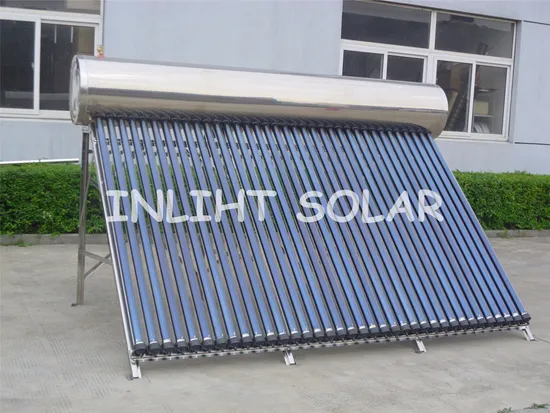

36tubes Stainles Steel SUS201 Solar Water Heater (Hot Sales)
Key advantages
1. Professional manufacturer with 18 years experience,good technical support;
2. CE approved, good quality, high heat efficiency;
3. Short and punctual delivery time;
4. Easy installation and free maintenance;
5. OEM and OEM order is acceptable;
6. Offer samples for Evaluation;
Products details and specification:

Item No.	Water Tank	Solar Vacuum Tube		Insulation	Packing	Container Loading
	Capacity (Gallon)	Qty / Pcs	Size / mm	mm	cbm/set	20GP	40HQ
ILH-5818S470S-12H	22	12	Φ58*1800	55	0.45	63	154
ILH-5818S470S-15H	28	15	Φ58*1800	55	0.53	53	130
ILH-5818S470S-18H	33	18	Φ58*1800	55	0.64	44	107
ILH-5818S470S-20H	38	20	Φ58*1800	55	0.70	40	99
ILH-5818S470S-24H	45	24	Φ58*1800	55	0.80	35	86
ILH-5818S470S-30H	55	30	Φ58*1800	55	1.02	27	68
ILH-5818S470S-36H	70	36	Φ58*1800	55	1.18	24	58
1. Inner tank: Food-grade stainless steel SUS304-2B or SUS316L with 1.2mm-1.5mm thickness
2. Tank Exterior Shell: High quality Inox 0.4mm
3. Heat Insulation: High-density polyurethane integrated foam-forming insulation layer
4. Vacuum Tube: Red copper heat pipe, three-target glass tube, aluminium fin
5. Bracket: Inox or Aluminum alloy, suitable for slope and flat roof installation
6. Optional Devices :Electric heater, Intelligent Controller, Anode magnesium bar,T/P & Safety valve
7. Rated Working pressure: 6.0 Bar
8. Angle of bracket: 25°~51°
9. Anti-freezing: > -40°C
10. Package: If it is full container loading, the standard package is Seaworthy carton ; If it is the less than container loading, the best is plywood crate and seaworthy carton combination package

Competitive Advantage:
1.Adopts the best conduction performance metal- heat pipe (copper)
2.Can be used all year round in the cold climate
3.High efficiency, rapid warming. Heat pipe in vacuum tube could transfer hot energy to cold water in pressurized solar water heater tank rapidly
4.The whole pressure of the system is up to 1.5kg/M2, the inlet could connect the tap water directly, the max pressure can be 0.6Mpa
5.No water in the tube, one tube broken don't influence the system working
6.The design for inner tank is reasonable and scientific, which could hold 100, 000 times fatigue test without any damage
7.Dual-purpose brackets for both flat and inclined roof
8.The system is pressurized,it keep a constant temperature of water in the tank, avoid the problem came from water level controller malfunction which could cause water flow out

---
