Hot Sale Output Size 3mm Sand Making Machine

Product Description

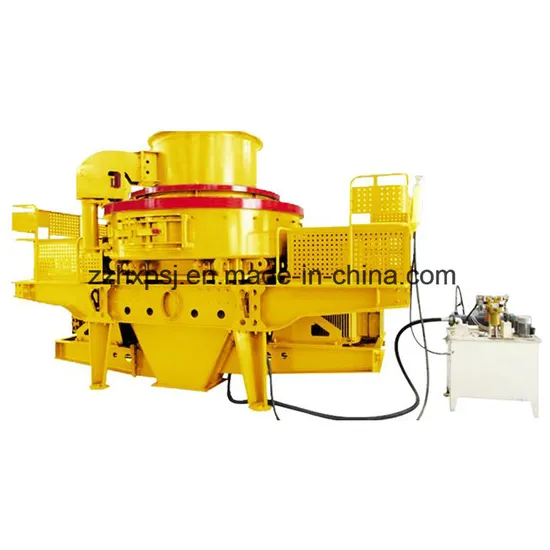

Hot Sale Output Size 3mm Sand Making Machine

[Feed size]:50-80 mm
[Capacity]:60-520 T/h
[Application]:Ore crushing, construction aggregates production, construction waste crushing,railway, bridge construction and other industries
[Materials]:Granite, marble, basalt, limestone, quartz stone, river gravel, iron ore, copper ore, etc.

1. the VSI pebble sand making machine is used for producing building aggregate, concrete, aggregate for road surface and roadbed, asphalt concrete and cement concrete.
2. It is also used for sand making and shaping in the field of engineering such as water conservancy, hydroelectric power, high-class highway, high-speed railway, passenger special line, bridge, airport pavement, municipal works and high-rise buildings.
3. It is used widely in many industries such as building materials, metallurgy, chemical engineer, mining, refractory materials, cement etc.
4. It is used for producing glass raw materials quartz sand and other high purity materials.
Application:
pebble, limestone, granite, basalt, diabase, andesite, etc
Sand making machine working principle:
You can see the above VSI sand making machine video for better understanding.
VSI series sand making machine is the use of high-speed movement of materials to each other to break and friction between materials and shattered. This series of equipment can not only gravel sand, but also out of the finished products have plastic effect.
According to the way of feeding material, can be divided into the center of the whole feed and center feed with falls off the feed two; according to the broken form can be divided into "rock stone" and "hot stone" two broken.
1. the center feeding falls with the material: the material enters the crusher through the feed hopper, and the material cone falls to the powder tray, and is divided into two parts by the powder feeding tray. A part of the bulk material by the middle of the plate into the high-speed rotation of the impeller, the impeller is quickly accelerated, then high speed out from the impeller, with the bulk of another part of the material under impact plate scattered around the broken, and then together to impact crushing cavity lining materials, by oblique impact to rebound at the top of the crushing chamber, downward movement to change direction, and emitted from the impeller material to form a continuous material screen. Thus, the material is broken, rubbed and ground in the crushing chamber for crushing purposes. The crushing material will leave the crushing chamber under the action of gravity and unload in the unloading hopper of the lower casing. The wall of the crushing chamber is provided with an upper and a lower protecting plate, so as to protect the casing from being impacted and worn. This is the "rock stone"; if the strike plate for a week under the shield, the materials is directly impacted by the week on the guard plate and broken, this is the center of the feed "hot stone".
2.: Center feed and center feed with waterfall down the working principle of material is basically the same, the difference is the center when the feed will be cone removed, all materials from the feeding port directly into the bulk material plate, scattered by the tray and then broken impeller directly into the middle.

VSI sand making machine main models and technical specifications:

Model		VSI-7611	VSI-8518	VSI-9526	VSI-1140	VSI-1145
Capacity (t/h)	Cascade and Center Feeding	120-180	200-260	300-360	450-520	490-600
	Center Feeding	60-90	100-130	150-190	225-260	250-310
Feeding Size (mm)	Soft Material	< 35	< 40	< 45	< 50	< 50
	Hard Material	< 30	< 35	< 40	< 45	< 45
Rotation Speed (r/min)		1700-1890	1520-1690	1360-1510	1180-1310	1180-1280
Power of the Double Motors (kw)		110-150	180-220	264-320	400-440	440-520
Overall dimension L*W*H (mm)		3700*2150*2100	4140*2280*2425	4560*2447*2278	5000*2700*3300	5100*2790*3320
Weight (t)		9.8	13.5	16.8	25.6	27.5
Power Source		380v:50hz
Vibrating Sensor		Inspection Scope:0.1-20mm/s, it can be adjusted continuously.
Hydraulic Lubrication Station	Power of Double Oil Pump	2x0.31kw
	Safety	Double oil pumps make sure supply of oil with; Stop automatically without oil flow or oil pressure; Water cooled; Heating start the motor in winter.
	Overall Dimension L*W*H (mm)	820x520x1270
	Power of Oil-Box Heater	2kw

sand making machine Advantages:
High throughput and high yield
Compared with the traditional equipment under the same power, the output of 50--500t/h has increased by 30% and stabilized.
Wearing parts are low
The design of the material impact angle of the best crushing chamber has less friction and less cost than the traditional equipment. The cost of the equipment is reduced by 40%.
The product has excellent grain shape
The product of a cube, grain shape, reasonable gradation, fineness of mesh is adjustable; especially suitable for artificial sand and stone shaping practice than other traditional equipment sand, shaping effect increased by 30%.
Hydraulic device, easy to maintain
The utility model relates to a hydraulic cap opening device, which enables the overhaul and disassembly of parts in the crushing cavity to be convenient and quick, shortens the downtime and saves time and effort.
Automatic detection, safe and reliable
The vibration is displayed on the alarm device. If the equipment is not working properly, the alarm can be sent out to stop the equipment and protect the machine.
Thin oil lubrication, automatic maintenance
Germany's original oil lubrication station, double pump complementary guarantee oil supply; no oil flow, no oil pressure automatic stop; water cooling, winter electrical door mouth heat start.
Easy to install and easy to operate
Light weight of equipment, installation modes, movable installation; installation, repair and maintenance is simple, easy to operate; once the specific uses of VSI crusher need only minor adjustments, can maximize its excellent performance.
One machine is multi-purpose, and the application is flexible
Unique feed crushing mechanism, has a variety of crushing cavity, can realize the conversion of "rock stone" and "hot stone" is very convenient, can be used to adjust the VSI according to the different needs of users of sand, plastic and abrasive materials etc.

Packaging & Shipping
Packaging Details:
1. small parts are packed by wooden case.
2. main engine by nude packing, container, or upon customer's requirement.

Our Services
24 hours online customer service, detailed and professional solution.
Skilled engineers, scene investigation, free customized program solution. The purchase contract has a certain reputation guarantee, provide you the perfect product to your hands. After-sales service support, Expert technical training and operating instructions, site installation and commissioning, adhere to test equipment and visit our customers regularly. We offer all kinds of models, high-quality crushing and screening equipment parts.

---
