Double Shafts Empty Bunch/Fruit/Coconut/Palm Shredder Machine

Product Description

Double Shafts Empty Bunch/Fruit/Coconut/Palm Shredder Machine
Double shaft shredder machine and shearing cutting machine, is through the cut, tear and squeezing, reaching to decrease the size of raw material.
The shredder machine is widely used for waste plastics, waste rubber, timber and other waste materials.
High production efficiency, mechanized feeding way, high automation degree, greatly reduces the labor intensity of workers, improve the working environment.

Main application range:
1. Waste plastic bucket, plastic bottle, waste pipe, thin film, etc ;
2. Rubber, old tires, conveying belt, waste shoes, etc;
3. Old furniture, television, computer, wood, paper, cloth, leather, etc;
4. Steel, waste steel wire, color steel plate, paint buckets, cans, waste metal, etc;
5. Wood, waste wood pallet, plank, waste wood floor, wood packing case, etc.

The structure features:
Machine body, motor, reduction gears, six arris spindle, Moving Blade and bottom fix blade, frame, bearing housing and other major structures.

The working principle:
Spindle bearings on both sides of main shaft, through motor and reduction gear, rotary main shaft drives the spiral arrangement blades, make the blades on two shafts are meshing together, to tear, raw materials, and repeating this move to finished shredding. electronic control parts has a Reverse automatic control devices, when overfeeding or raw material is too big, Machine will inverted running and stop, avoid damage of blades or motor. To improve the service life and cutting ability, the main shaft through conditioning processing, and use high quality imported blades.

Product features:
1. The double shaft shredding machine adopts automatic control circuit, it has 4 control functions: start, stop, reverse and overload automatic inversion.
2. With a low speed, large torque and low noise.
3. The blade has many different materials: 9 Cr Si, SKD-11, 6cRw2Si, Cr12MoV, D2, W6, 55SiCr,
high hardness, good wear resistance, more choices.
4. The main shaft after heat treatment, increase the rated torque.
5. Split type bearing technology design, can quickly and efficiently to replace bearings, blade.
6. Spiral arrangement blades, increase the service life of the equipment.

Technical parameters:

Model	unit	FM-40-1500
Power	kw	55+55
Pieces of blade	pcs	36
Material	/	6Crwsi
Thickness	mm	30
Main shaft speed	r/min	15
Capacity	t/h	12
Weight	kgs	5000

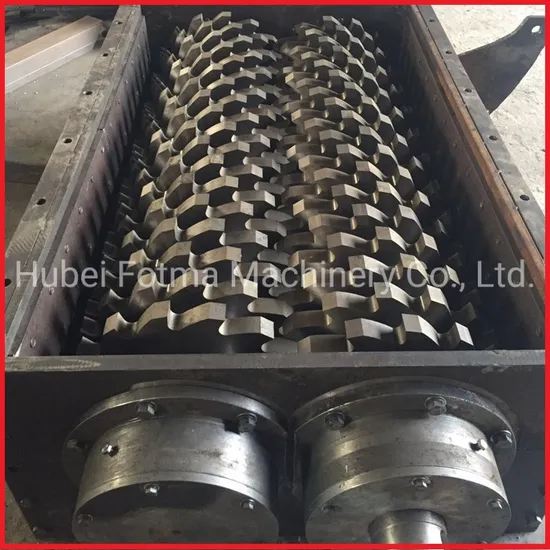

Photo:

---
