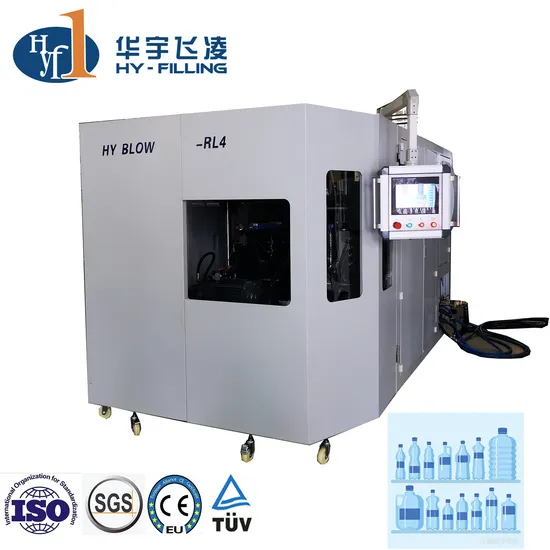

Automatic Juice Bottle Linear Blow Molding Machine

Product Description

Automatic Juice Bottle Linear Blow Molding Machine

General Introduction
The full automatic blow molding machine are developed and researched by HY-Filling on the basis of absorbing foreign advanced technology and aiming at the trend of high speed and high capacity, which can be used for the blowing of PET bottles. The machine is featured with reasonable structure, less power and air consumption, stable running, etc., which meets relevant national food sanitation requirements and shows the leading status domestically.
Characteristics of the Equipment
1) PLC touch-screen control. Production speed, shift capacity, malfunction classification, interface adjustment and so on can be display on the screen in different menu, which features friendly man-machine interface, easy operation and maintenance.
2) Special twice-blowing system ensures the stable forming quality of bottles.
3) The heater adopts the infrared temperature controlling by seven sections and digital automatic stable pressure temperature adjustment system.
4) Set technical parameters such as heating temperature, blowing time, etc. according to different preforms and bottle shapes.
5) Configured with full automatic preform unscrambler and lifter.
Main Configuration
1) Main configurations are adopt world famous brand, which ensures the advancement and stability of equipments.
2) High pressure pneumatic lines adopt the products of Buschjost NORGREN,LUCIFER PARKER,SMC, BURKET, etc.
3) Controlling pneumatic lines adopt the products of FESTO,SMC,MAC, etc.
4) All air-proof parts adopt the products of American Busak+Shamban.
5) Touch-screen adopts the Products of Pro-face or Hitech.
6) PLC controlling systems adopt the products of MITSUBISHI, OMRON, SIEMENS, etc.

Specifications

Cavity Number	6
Stable Capacity	7000~8000BPH(0.5L)
Bottle	Max. Height	310mm
	Max. Diameter	90mm
Air System	Operation Pressure	0.7Mpa
	Low Pressure Air Consumption	3.0 M3/min
	Bottle Blowing Pressure	3.0Mpa
	High Pressure Air Consumption	8.0 M3/min
Max. Driving Power	3.5KW
Max. Heater Capacity	49 KW
Machine Dimension	2000mm×19800mm×1900mm(L x W x H)
Machine Weight	3500KG

Our Services

Installation and commissioning
After the equipments arrived buyer's workshop, the buyer should take it's place for each equipment according to the supplied layout; the seller will send the experienced technician to guide the installation and debugging and trail production, and fulfil the designed capability within the designed time.

Training
The seller will supply technical training to the buyer. The training is includes: equipment structure and maintenance, control and operation. After training, the technicians of the buyer will grasp relevant operation and maintenance skills, and could adjust the technologies more skilled, and can deal with all kinds of malfunction in time.

After-sales service
1) After qualified of the equipment, the seller will supply one year guarantee, control system one year guarantee, free charge for wearing parts, and other spare parts with cost price. Within guarantee period, the technicians who accepted training should strictly obey the requirements asked by the seller to operate the equipments and maintenance, to find the common malfunctions and fault clearing in time; if the technicians of the buyer couldn't solve the problems themselves, the after-sales department will supply long range guide service by phone; if relevant measurements couldn't solve the problems, the seller will send the technicians to the buyer factory, clear the fault or relevant technical problems on site, the charges will reference to the installation and debugging charges.
2) After guaranteed, the seller will supply widely favorable technical support, after-sales service for the lifetime: favorable price for the wearing parts and other spare parts.

---
