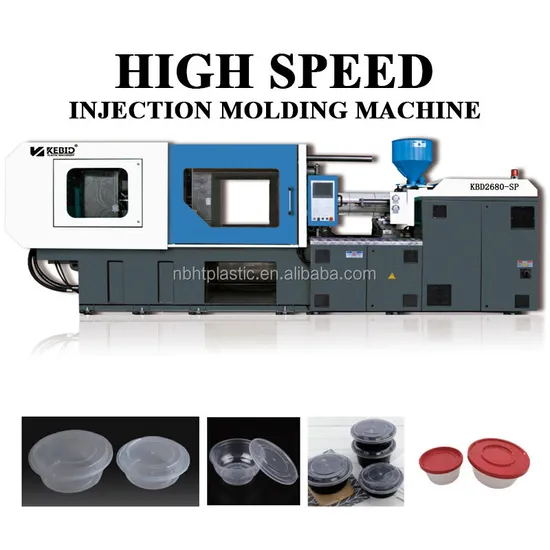

Kebida Thin Wall Food Box Container Making Injection Molding Machine

Product Description

Specification	Unit	KBD2680-SP
Injection Unit
Screw Diameter	MM	50
Shot Volume	cm3	491
Shot Weight	g	446
Injection Speed	mm/s	243
Injection Rate	G/s	434
Injection pressure	Mpa	154
Max_ Screw Speed	rpm	333
Clamping Unit
Clamping Force	KN	2680
Molding shit stroke	mm	495
distance between Tie-Bars	mm	520*520
Maximum die thickness	mm	575
Minemum die thickness	mm	245
Ejection stroke	mm	150
Ejection force	KN	70
others
System pressure	Mpa	16
Motor power	KW	40
Electric Capacality	KW	16.5
Fuel tank capacity	L	440
Machine dimensiongs	m	6*1.75*2.2.2
Machine weight	T	10.5

Clich 1
FAQ
Q:How to choose injection molding machine?
A:The injection weight should be about 1.2× product's weight; The tie bar space should be bigger than the mold dimension; Contact with us for more information.

Q:How to pay?
A:40% deposit T/T in advance, the balance 60% payment by T/T before delivery (we accept payment by T/T, L/C etc.)

Q:Is that possible for your company to send engineer to install machine for commissioning, even train our workers?
A:Yes, we can send our engineer to your factory for installing, commissioning, training. We have some engineers flying among different countries for after sale service and technical support. As per experience, if everything OK usually 5-15 days is enough. Therefore, before shipment, we need you to prepare invitation letter for visa. However, please be noted that all cost happened for visa, travel, hotel should be paid in advance by customers. In addition, we cannot guarantee each visa is successful.

Q:If we buy your machines, is there any warranty?
A:Yes, definitely. Totally 24-months warranty after shipment for mechanical parts, hydraulic parts, electric components (The screw just has 6-months). We are responsible for broken parts within 24-months. We will supply those parts in freeway but the possible transportation cost should be paid by clients.

Q:What is different with A,B,C screw, What is the price different?
A:The screw model is designed for different material and requirements, the screw diameter Changes from small, middle and big. There is no price difference in the price for choosing A/B/C screw types.

Q:How to choose the screw ?
A:For PC,Pa(Nylon)and other high viscosity material ,it's better to choose A screw .
For PP,PE,PS materials, better to choose B Screw .
For Recycled material , better to choose C screw .

Q:What's the delivery preriod after place the order?
A:Normally the delivery date will be in one month after receiving the down payment .

---
