Digital Model Electronic Micrometer Fast Hole Measuring Diameter

Product Description

Highly precise parts presently used in every aspect of industry including consumer electronics, audio & visual devices, automotive and communication devices are becoming more and more microscopic every year.
As the precision of industrial parts advances, simple structure measuring instruments that anybody can use to measure with high precision and few errors are required.
The answers to these needs are the Air Micrometer and the Electronic Micrometer.
The Air Micrometer is a relative measuring instrument that can measure the dimensions of a piece of work using air flow.
There are different measuring systems including the Flow type, and the Back Pressure type(differential pressure type).
Let us explain the Flow type measuring method(our product name: AM-10F).
After clean air is produced with a compressor and filtered, it is blown out nozzle with its pressure kept constant by a regulator.
When the clearance between the nozzle and the work to be measured changes, the amount of air being blown out the nozzle also changes, causing the height of a float to change.
The movement in position of the float can determine the actual dimensions of the piece of work.
There is an Electronic Micrometer similar to the above-mentioned relative measuring instrument.
It measures dimensions with a contracting type gauge head
This system that electrically magnifies the mechanical and very little variation enables precise measurement with prompt response, differing from an Air Micrometer.
As seen so far, our many years of precision gauge manufacturing techniques are applied in the manufacturing of measuring heads and master gauges that make full use of the characteristics regardless of being an air or Electronic Micrometer.
This precision is highly appraised and has attainted positive results in quality control and in greater efficiency in various industrial fields with Outstanding reliability
Specification

Item	Specification

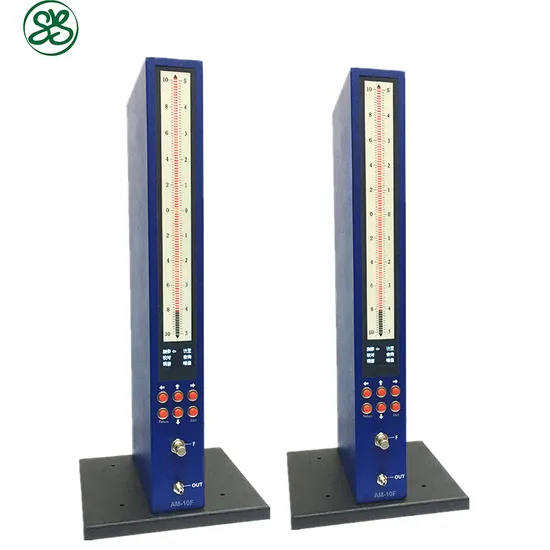

Product Name	Column Air Micrometer
Model	AM-10F
Order No	171-001
Input	1 air channel
Standard Nozzle Port Diameter/mm	φ2mm
Stability	≤±1µm/4h
Measuring Range/μm	±5/ ±10/ ±25/ ±50 (Four level)
Digital Resolution/μm	0.1(±5) / 0.1 (±10) / 0.5 (±25) / 0.5 (±50)
Bargraph Resolution/μm	0.1(±5) / 0.2 (±10) / 1 (±25) / 2 (±50)
Value Error	0.2(±5) / 0.3 (±10) / 1 (±25) / 2 (±50)
Measuring Time seconds	0.8S
Display	Bargraph: 0-99 segment/3 color with Green Red Orange for OK -NG +NG
Communication Port	RS232C/RS485
Language	Chinese/English
Power Requirement	100 to 264V, 50/60 Hz Single Phase
Source Pressure	0.4MP to 0.8MP
Operating Temperature	0 to 45°C
Dimensions	WxHxL(50mm × 480mm × 200 mm)
Weight	3.5 kg

Item	Specification
Product Name	Multi Air Micrometer
Model	AM-20E	AM-D Series
Order No	171-002	171-003
Input	2ch( max 4ch)	2ch(max 12ch)
Standard Nozzle Port Diameter/mm	φ8mm	φ8mm
Working Method	Auto-Measuring/By hand measuring/ By foot Switch
Measuring Storage	10-300,000	10-300,000 Support expand
Measuring Range/μm	20/ 50/100/ 200/ 1000
Digital Resolution/μm	0.1 / 0.2/ 0.5/ 1.0
Stablity	less 0.4μm
Date Analysis	online SPC basic data storage and analysis processing (can be customized CP\CPK function);
Display	Large touch screen LCD
Communication Port	RS232C/RS485	RS232C/RS485
Language	Chinese/English	Chinese/English /Customzied (optional)
Power Requirement	100 to 264V, 50/60 Hz Single Phase
Source Pressure	0.4MP to 0.7MP	0.4MP to 0.6MP
Operating Environment	Tempertaure:0 to 45°C/ Humidity 85%No icing, no condensation
Dimensions	WxHxL(280mm × 200mm × 200 mm)	WxHxL(260mm × 280mm × 200 mm)
Weight	4kg	5kg

---
