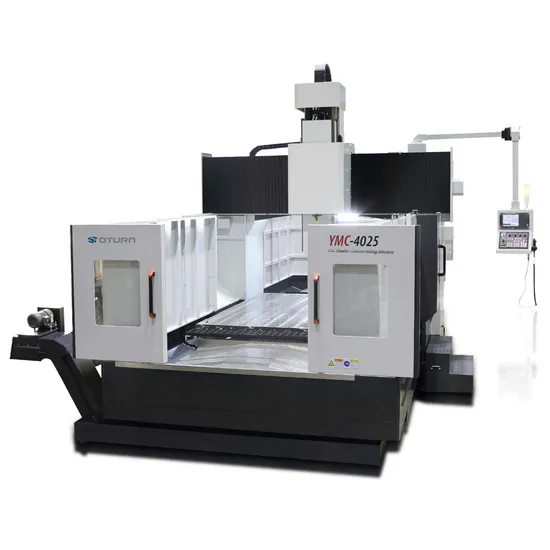

High Performance CNC Milling Machine CNC Gantry Machining Center with 5 Axis Capability and Hsk63 Spindle

Product Description

Product Description
Unmatched Rigidity and Precision for Long-Term Performance
The core components of our High Performance CNC Milling Machine, including the base, workbench, column, spindle box, and saddle, have been meticulously analyzed using FEA (Finite Element Analysis). This ensures an optimized design featuring lightweight construction and exceptional rigidity. The minimal distance between the spindle center and the guide rail surface, paired with a reduced flipping torque, significantly enhances processing stability. The machine is crafted using resin sand molding and high-strength, high-quality cast iron, followed by a comprehensive heat treatment process to eliminate residual stresses. Each contact surface undergoes precise manual scraping, ensuring the structure's ultimate rigidity. Equipped with a versatile head library and an innovative vertical and horizontal tool changing system, this machine offers automated, efficient, and highly productive performance. The modular spindle design adapts to various cutting characteristics, meeting diverse machining needs. The Y-axis employs an ultra-high rigidity roller-type linear slide rail, merging the robustness of hard rails with the swift movement and minimal wear of linear rails, dramatically improving rigidity and control.
Our three-axis system features internationally renowned brand roller guide rails, known for their robust rigidity and outstanding dynamic accuracy. The transmission system employs large-diameter, high-precision, Taiwan-made grinding ball screws, ensuring a compact structure, smooth movement, low thermal elongation, and high precision. The screw support creates a stable, high-rigidity mechanical transmission system. The high-precision spindle is designed to provide continuous, reliable lubrication to spindle bearings, while the standard spindle oil cooling system maintains a stable working temperature for prolonged periods.
Product Parameters

DESCRIPITION	UNIT	YMC-4025
Travel X/Y/Z	mm	4000/2500/1000(1200)
Table Size	mm	4200×2200
Max.Table Load	kg	15000
Distance from Spindle Nose to Table	mm	200-1200
Distance between Column	mm	2500
Spindle Tapper		BT50/φ190
Spindle RPM		6000
Spindle P.R	kw	22/26
G00 Feed Rate X/Y/Z	mm/min	10000/15000/10000
G01 Feed Rate	mm/min	1-8000
Machine Weight	kg	39000
Collant Tank Capicity	liter	600
Lubrication Tank	liter	4
Power Capicity	kVA	45
Air Pressure Request	kg/cm²	5-8
ATC Type
ATC Tapper		BT50
ATC Capicity		24/32(40)
Max.Tool dia./length	mm	φ125/400
Max.Tool Weight	kg	18
Machine size	mm	10600*4400*3800
Positioning accuracy	mm	0.008/300
Repeatability	mm	0.005/300
Min. tool change time	s	2.9
