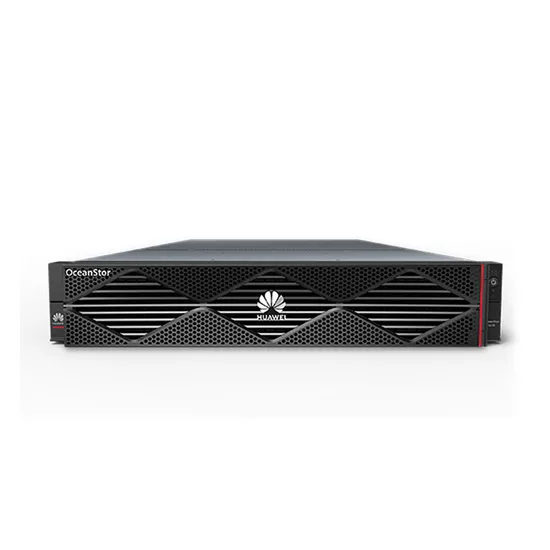

New-Gen OceanStor 5210/5310/5510/5610 Hybrid Flash Storage Systems Hua wei's new generation of mid-range hybrid flash storage systems is designed to future-proof data centers.
Hua wei New-Gen OceanStor 5210/5310/5510/5610 adopt Hua wei proprietary algorithms to efficiently deploy data across different media,using Solid-State Disks (SSDs) to accelerate mission-critical data. Comprehensive convergence and value-added features alsodeliver system efficiency and reliability, while built-in insight modules provide intelligent prediction capabilities.
Such features provide diversified storage services to users, making the systems purpose-built for finance, government,manufacturing, education, healthcare, energy, and media entertainment sectors.
| model | OceanStor 5210 | OceanStor 5310 | OceanStor 5510 | OceanStor 5610 |
| Hardware specifications |
| Maximum cache (dual control, with controller expansion) | 128 GB- 512GB | 128 GB-2 TB | 384 GB-4 TB | 768 GB-8 TB |
| Supported storage protocols | FC, iSCSI, NFS, CIFS, SMB | FC, iSCSI, NFS, CIFS, FC-NVMe, NVMe over RoCE, NFS over RDMA, FTP*, HTTP*, NDMP, S3*, SFTP* |
| Front end channel port type | 8/16/32 Gbps FC, 1/10/25 Gbps Ethernet | 8/16/32 Gbps FC/FC-NVMe, 1/10/25/40/100 Gbps Ethernet, 25Gbps NVMe over RoCE/NFS over RDMA | 8/16/32 Gbps FC/FC-NVMe, 1/10/25/40/100 Gbps Ethernet, 25Gbps/100Gbps NVMe over RoCE/NFS over RDMA |
| Backend channel port type | SAS 3.0 | 100Gbps RDMA/SAS 3.0 |
| Maximum number of hot swappable I/O modules/control box | 4 | 6 | 12 |
| Maximum number of front-end host interfaces/control box | 28 | 40 | 48 |
| Hard disk type | SAS TLC SSD,SAS, NL-SAS | |
| Software specifications |
| RAID support | RAID 10*, RAID 5, RAID 6 and RAID-TP (tolerate simultaneous failure of 3 disks), etc |
| Value added software | SmartAcceleration, SmartThin, SmartQuota, SmartMulti-Tenant, SmartQoS, SmartVirtualization, SmartMigration, SmartCompression,SmartMobility*, SmartMove HyperSnap, HyperReplication, HyperClone, HyperMetro, HyperCDP, HyperLock, HyperEncryption, HyperDetect*, HyperLink*, CloudBackup*,NFS+ |
| Storage management software | DeviceManager,UltraPath,DME IQ) |
| Electrical specifications |
| source | 100V~240V AC±10%,192V~288V DC,-38.4V~-75V DC | 200V~240V AC±10%, 192V~288V DC |
| Dimensions (length x width x height) | 2.5-inch controller enclosure: 520mm×410mm×86.1mm 3.5-inch controller enclosure: 600mm×447mm×86.1mm | 2.5-inch controller enclosure: 520mm×447mm×86.1mm 3.5-inch controller enclosure:600mm×447mm×86.1mm NVMe controller enclosure: 620mm×447mm×86.1mm | 2.5-inch controller enclosure: 820mm×447mm×86.1mm 3.5-inch controller enclosure: 900mm×447mm×86.1mm NVMe controller enclosure: 920mm×447mm×86.1mm |
| SAS Hard disk rack: 410mm×447mm×86.1mm NVMe Hard disk rack: 620mm×447mm×86.1mm NL-SAS Hard disk rack: 488mm×447mm×175mm |
| Weight (excluding hard drive units) | 2.5-inch controller enclosure:16.4Kg 3.5-inch controller enclosure:16.3Kg | 2.5-inch controller enclosure:23.75Kg 3.5-inch controller enclosure:24.1Kg NVMe controller enclosure:21.25Kg | 2.5-inch controller enclosure:38.05Kg 3.5-inch controller enclosure:38.05Kg NVMe controller enclosure:40.65kg |
| 2.5-inch SAS Hard disk enclosure:13.4Kg 3.5-inch SAS Hard disk enclosure:26.5Kg NVMe Hard disk enclosure:24.95Kg |
| Working environment temperature | The ambient temperature at an altitude of -60~+1800m is 5 ºC~35 ºC (cabinet)/40 ºC (frame). At an altitude of 1800m~3000m, for every 220m increase in altitude, the ambient temperature (upper limit) decreases by 1 ºC. |
| Working environment humidity | 10%~90%R.H. |
After sales service guarantee; Support sample and customization services.
Q: Are you a trading company or a manufacturer? Can I use our own logo and label?
A: We are a trading company that provides domestic and international trade services. We also provide OEM/OEM services.
A: We have professional engineers who test each piece of equipment before shipment to ensure that the shipped products are in good condition.
A: We have professional personnel to help you solve the problem. If the product is defective, we usually offer you a return, refund, or replacement of the defective product.
A: We accept credit cards, wire transfers, PayPal, and other payment methods. We also support fast shipping within 72 hours.
A: The minimum order quantity for normal products is 1, and the product warranty period is usually 1 year.
