Single Shaft Shredder Machine for PE PVC thick wall pipe

Product Description

Product Description

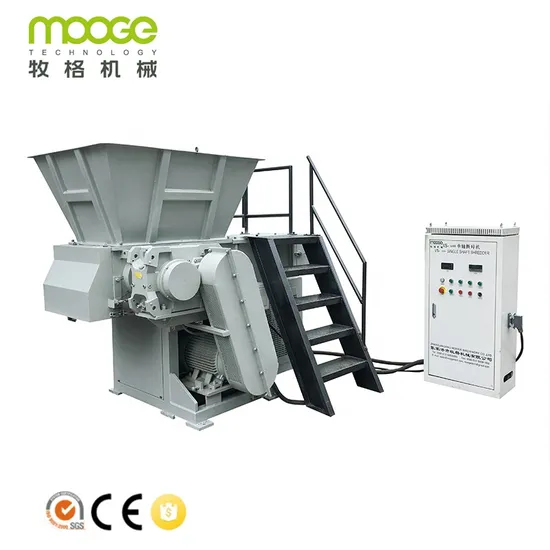

High Efficient Plastic Recycling Single Shaft Shredder Machine
Plastic shredder/shredding machine was main used to shred different kinds of plastic materials, especially very large waste plastic.
single shaft shredder machine can shredding plastic lumps, barrels, pipes , wood, wood pallet, big block material, plastic container, plastic chair , plastic pallet, woven bags ,jumbo bags, cable tc. Our company has many years experience in manufacturing the plastic shredder machine, we supply 300~2000 kg/h capacity . we also can make it according to your requirement. 1. It adopts PLC control system, automatic overload protection and auto reverse switch
2. Good shaft structure design, low noise,
blades easy changeable
3. The low rotation speed results in a particularly quiet shredding process with low levels of dustgeneration
4. It can be adjusted according to customer specific requirements for throughput volume
Product Parameters

Model	VS-2860	VS-4080	VS-40100	VS-40120	VS-40150	VS-48150
Motor Power	22KW	37KW	45KW	55KW	75KW	90KW
Rotor Speed	83RPM	83RPM	83RPM	83RPM	83RPM	83RPM
Rotor Diameter	φ280	φ400	φ400	φ400	φ400	φ480
Rotor Blades QTY	26	38	46	58	74	111
Fixed Blades QTY	1	2	2	2	3	3
Screen Dia.(mm)	60	60	60	60mm	60mm	60mm
Capacity	300kg/hr	600kg/hr	800kg/hr	1000kg/hr	1500kg/hr	2000kg/hr
Diemension(mm)	2225*1350*1885	3000*1680*2150	3000*1880*2150	3000*2200*2450	3300*2500*2500	3300*2600*2500
Weight(Kgs)	1850	3000	3800	4200	5500	6500

Detailed Photos
Rotary shaft
The rotary shaft made by high quality carbon steel,anti-worn
Rotary blade
Move blade made by D-2, by bolt fixed in the rotor shaft ,it is easy for worker change it . blade can use 4 times when the blade worn after using long time
Fixed Blade
Using D-2 materail,USA Standard,HRC 58-59 more better than SKD-II,We also can use DC-53 material
Screen
the screen use 10mm thickness carbon steel made,with 60mm screen,the flakes will easy shredding and down
Motor,Using Beide brand motor(siemens standard motors ltd in china)
Bearing,Using Japan famous brand- NSKoriginal import from Japan factory We also supply SKF bearing for customer
Contactor,Use Schneider brand in us control system
PLC,Use Siemens PLC for shredder machineAutomatic control rotor shaft postive , negative rotary
Raw material before shredding and after shredding
Our service
• Pre-sale: we given client the details technician offer, sign the sales contract etc• In-sales: we supply the details layout, installation instruction, technician support for the clients• After sales: we arrange engineer to install the machinery and training the workers for client• We have 24hours team to solve the after sales problem• We have free spare parts with the machine• We supply long term spare parts for every customer• We always up date the new technology to every customer
