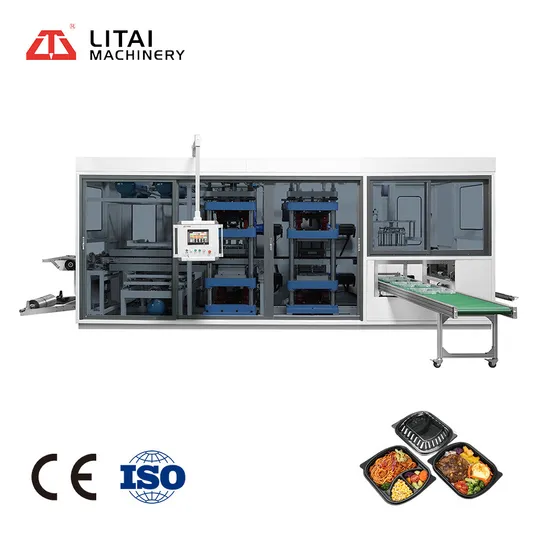

Customizable Plastic PP Pet PS Egg Plate Tray Food Container Lunch Box Multi Stations Thermoforming Making Machine

Product Description

Product Parameters

Model	TTF-700A
Forming Area	700mm x 550 mm
Forming Depth (Max.)	120mm
Sheet thickness	0.2-2.0mm
Forming Speed (Max.)	30times/min
Air pressure	0.6-0.8mpa
Air consumption	3.6 m³/min
Water consumption	0.7 m³/h
Sheet width (Max.)	730mm
Suitable Sheet	PP, PS, HIPS, PET, PVC, PLA etc.
Power supply	AC 380V, 50Hz, Three-phase, Four-wire
Used power	95Kw
Rated power	190kw
Heating power	118Kw
Procedure	Forming-cutting-stacking
Dimension	L13000*W4700*H2750mm
Weight	About 19.0T

Product Display
SUMMARY OF MACHINE
Every station is driven by the eccentric crank linkage structure. Feeding and heating part have optoelectronic switch in order to prevent error operating from production process. The toothed chain made of 65#Mn, helping convey sheet. Aluminum rails with water cooling, save water. The machine adopts PID temperature system, it shows high precision, and temperature control tolerance <1ºC. There is a rapid mould change device, which shortens the time for mould change extremely. Each servo motor has overload protection for machine's overworking. Low barycenter and height of finished products as well as steady running ensures easy operation and friendly viewing. There is an alarm function of the sliding doors. Application:
TTF series full-automatic thermoforming machine is our latest developed core product. The machine
combines forming, punching, cutting, and stacking into process. widely used and suitable for most of
the customer requested, it can produce plastic trays, containers, boxes, lids, etc. The machine is
completely driven by servo motor. stable operation, low noise, high efficiency, high quality.
Company Profile
Certificate
Exhibition
Transport Packaging
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory, and we export our machines to more than 80 countries since 2001.
Q2: How long is the warranty period?
A2: We have a professional QC department in charge of products' quality.
Q3: How long is the warranty period?
A3: 13months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to maintenance, beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.
Q4: How to install the machine?
A4: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.

---
