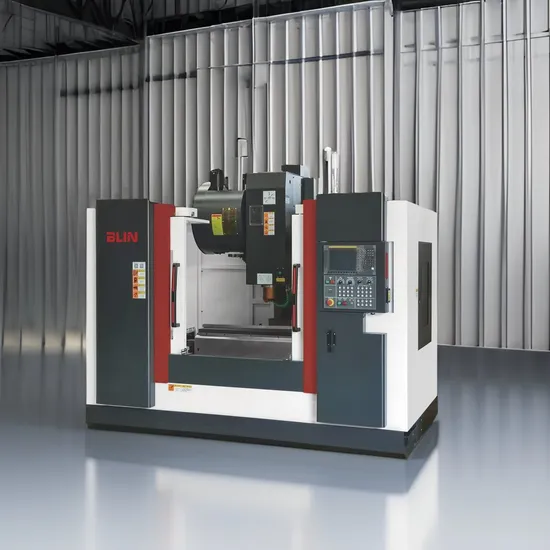

Bl-B1580 Big Table CNC Milling Machine Price, CNC Machine Tool

US$41,000.00-92,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

BL-B850/1060/1580

Type

Worktable Milling Machine

Object

Thread

Structure

Bed type

Milling Cutter Type

Angle Milling Cutter

Milling Cutter Structure

Indexable Type

Controlling Mode

CNC

Automatic Grade

Semiautomatic

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

X/Y/Z Axes Guideway Type

Hard Box

Table Size

1050×500/1300×600/1700×800mm

X/Y/Z Axes

800/500/550;1000/600/600;1500/800/700mm

Spindle Type

Bt40/Bt50

Spindle Motor

7.5/11kw;15/18.5kw

Spindle Speed

8000rpm(Option:10000rpm)

Transport Package

Plywood Case/Steel Pallet

Specification

Box guideway

Trademark

BLIN

Origin

China

HS Code

8459619000

Production Capacity

500 Units/Year

Packaging & Delivery

Package Size

250.00cm * 320.00cm * 250.00cm

Package Gross Weight

250.000kg

Product Description

- 3 axes adopt WIDE RECTANGLE BOX guideway, Heavy-duty type,suitable for heavy-duty cutting
- Adopt CHINA top class cast iron
- Use 24T Arm type ATC, fast and stable tool changing
- 3 axes use TAIWAN C3 class precision ball screw
- Adopt TAIWAN precise spindle unit
Details:

Item	Specification	Unit	BL-B850	BL-B1060	BL-B1580
Guideway	X/Y/Z axes guideway type	/	HARD BOX	HARD BOX	HARD BOX
Worktable	Table size	mm	1050×500	1300×600	1700×800
	Table max. loading	kg	600	800	1500
	T slot(NO./width/gap)	mm	5/18/90	5/18/120	5/22/135
Travel	X/Y/Z axes	mm	800/500/550	1000/600/600	1500/800/700
Spindle	Distance from spindle nose to table surface	mm	150~700	180~780	170~870
	Distance from spindle center to column surface	mm	560	655	800
	Spindle type	mm	BT40	BT40/BT50(opt.)	BT50
	Spindle motor	kw	7.5/11(FANUC) 7(SIEMENS 828D)	7.5/11(FANUC) 9(SIEMENS 828D)	15/18.5(FANUC) 12(SIEMENS 828D)
	Spindle speed range	rpm	8000(belt-drive) (opt.:10000/12000)	8000(belt-drive) (opt.:10000/12000)	7000
Feeding axes	Cutting feed speed	m/min	10	10	10
	Fast moving speed	m/min	20/20/20	20/20/20	20/20/20
	Ball screw O.D./pitch	mm	Φ40/10	Φ40/12	Φ63/10(XY)/Φ50/10(Z)
Precision	Positioning precision	mm	0.012/0.010/0.012	0.015/0.012/0.012	0.028/0.018/0.020
Precision	Repeatable positioning precision	mm	0.008/0.006/0.008	0.010/0.008/0.008	0.018/0.010/0.013
Tool magazine	Tool magazine type	/	Umbrella type 20T/Arm type 24T
	Max. tool weight	kg	8	8	15
	Max. tool length	mm	300	300	350
	Max. tool dia.	mm	Φ80	Φ80	Φ110
Others	Total power	KVA	15	20	35
	Overall dimension(L×W×H)	mm	2800×2300×3100	3200×2750×3200	4300×3750×3100
	Gross weight/Net weight	kg	6500/6000	8000/7500	13000/12500

Main parts list:

Parts	Brand
Bearings	JAPAN NSK/NTN
Ball screw	TAIWAN HIWIN/PMI
Spindle	TAIWAN
Servo motor& driver	GERMAN SIEMENS/JAPAN FANUC
Air-oil cylinder	TAIWAN
Lubrication pump	JAPAN HERG

Standard configuration: - FANUC CNC Controller
- 24T ARM type tool magazine Optional configuration: - SIEMENS 828D CNC Controller
- 20T Umbrella type tool magazine
- Chip conveyor
- ZF reduction box
