US$50,000.00-100,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Transport Package
Woodencase
Production Capacity
1000pieces/Year
Product Description
Product Description

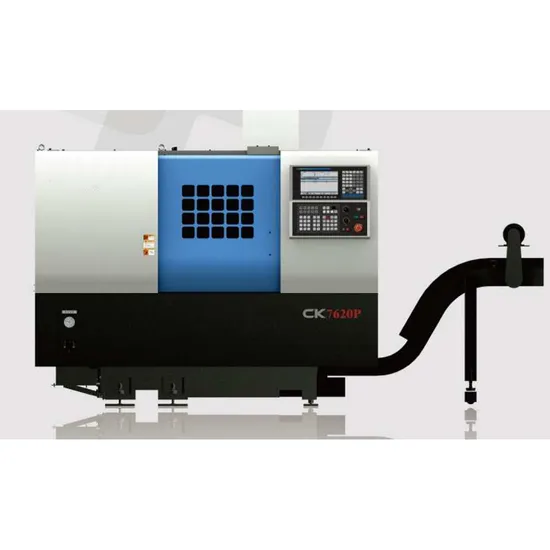

CK7620P CNC lathe is a machine tool with high rigidity, high precision and excellent accuracy retention.
The machine is cast with high strength cast iron, integral structure of bed and base, linear guide pair, and good dynamic response.
The machine is equipped with multi-station row tool holder (tailless seat), rapid tool change, reliable, high production efficiency, can be equipped with FANUC Oi Mate, FANUC OI-TD, Guangzhou GSK980TD numerical control system.
The machine tool is suitable for semi-finishing and finishing of all kinds of high-precision disc and short-axis parts.
Product Parameters
| PARAMETERS |
| ITEMS | | CK7620P |
| Capacity |
| Max. swing over bed | mm | Φ400 |
| Max. swing over slide | mm | Φ105 |
| Recommended turning dia./length | mm | Φ100/180 |
| Max. turning dia. | mm | Φ200 |
| Max.bar dia.(hollow chuck/collet chuck) | mm | Φ51/Φ42 |
| Spindle |
| Hydraulic chuck dia. | mm | Φ210 |
| Spindle nose | mm | A2-6 ( GB5900.1 ) |
| Spindle thru-hole | mm | Φ62 |
| Spindle speeds | r/min | 40-4000 |
| Power of main motor(cont./30min) | kW | 7.5/11(frequency conversion) 11/15(servo) |
| Feeds |
| Slant angle | DEG | 60° |
| X/Z travel | mm | 400/300 |
| X/Z rapid traverse rate | m/min | 16/16 |
| Turret |
| Number of stations | | 6/8 |
| Tool size (tuming/boring) | mm | 20x20/Φ32 |
| Others |
| Power supply | kVA | 20 |
| Dimensions(L×W×H) | mm | 2300x1480x1750 |
| Total weight | kg | 3200 |
Detailed Photos
High precision through hole spindle structure
Equipped with multi-station row tool holder
High rigidity and high precision spindle structure
>>
