4 Stroke Agricultural Equipment Gear Drive Diesel Power Tillers Garden Rotavator Diesel Rotary Cultivator Tiller (D186FA)

US$228.00-232.00 40 Pieces (MOQ)

Basic Info.

Model NO.

D186FA

Application Field

Agriculture, Livestock, Aquaculture, Fisheries, Forestry

Farming Policy

Dry Cultivating Machinery

Power Source

Diesel

Operation

Soil Preparation Machinery, Continuous Running Operation

Traction Type

Hanging

Drive Type

Gear Drive

Arbor Configuration

Horizontal Axis

Certification

CE, EMC,Euro V

Color

Red

Warranty

1 Year

Engine Model

186fa(E)

Engine Type

1-Cylinder,4-Stroke,Air-Cooled

Power

6.3kw

Speed

3600r/Min

Starting Mode

Recoil/Electric

Fuel Tank

3.5L

Oil Capacity

1.1L

Clutch Style

Plate Cultch

Type of Drive

Gear Drive

Gear Shifting

201r

Cultivation Width

70-110cm

Cultivation Depth

10-25cm

Task Speed

1-1.6km/H

Productivity

0.05-0.1hm3/H

Oil Consumption

10-15kg/Hm3

Transport Package

Carton

Specification

77 cm x 44 cm x 87 cm

Trademark

GTL/OEM

Origin

China

Production Capacity

50000 PCS/Year

Product Description

4 Stroke Agricultural Equipment gear drive Diesel Power Tillers Garden Rotavator Diesel Rotary Cultivator Tiller (D186FA)
Product information

Item No	D186FA
Engine	Diesel
Model	186FA(E)
Type	1-Cylinder,4-stroke,air-cooled
Power	6.3kw
Speed	3600r/min
Starting mod	Recoil/Electric
Fuel tank	5.5L
Oil capacity	1.6L
Clutch style	Plate cultch
Type of drive	Gear drive
Gear shifting	201R
Cultivation width	70-110cm
Cultivation depth	10-25cm
Task speed	1-1.6km/h
Productivity	0.05-0.1hm3/h
Oil consumption	10-15kg/hm3
Certification	CE, EMC,EURO V

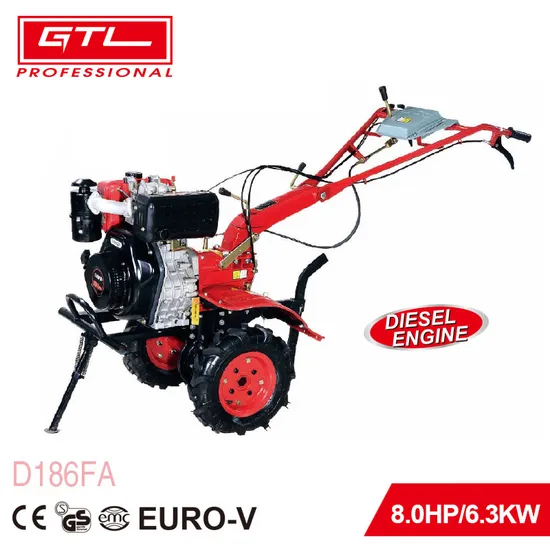

Product picture
Optional Spare Parts
APPLICATION SCENARIOS..................................................................................................
Product advantage
1.Simple - easy to use engagement levers and simple recoil starting
2.Smooth - Soil finishes with table-like smoothness
3.Dependable - Synchronous gear drive transmission, forged tines, and 4 stroke,single cylinder engine
4.Stable - Low center of gravity and rear mounted tines for easy control and stability in the row
It is the perfect tool for pre-planting ground preparation, as well as many other tasks during the gardening season, such as cultivating between garden rows. With a fingertip throttle control and a clutch handle, it provides a consistent transmission of power to tines under varying soil conditions.
