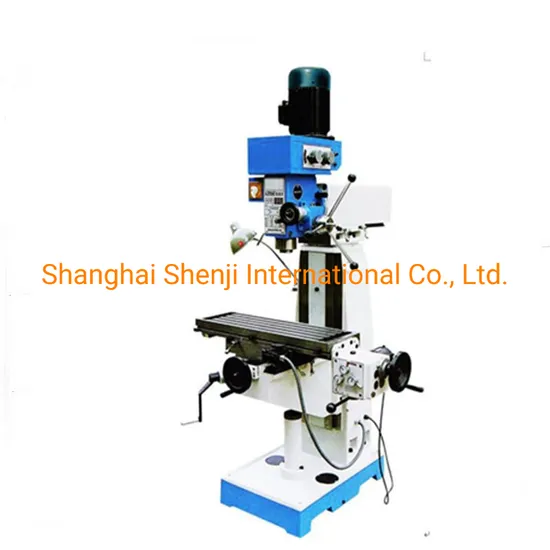

Xz7550c Domestic Vertical Drilling and Milling Machine

Product Description

XZ7550C milling and drilling machine The main performance characteristics:: 1 Universal use as milling machines and drill press
2. Easily shiftable gear drive ensures power transmission without losses
3. With v-belt spindle drive
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
5. Spindle and quill with large diameter, radial and axial bearing allows use for milling machines
6. Milling table swivels horizontally, including scale
7. Dovetail guides on all 3 axes
8. Head, table height can be adjusted through gear rack
9. Forward/reverse setting through motor switch
Application:
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department. Product main technical parameters: Technical Data of Drilling And Milling Machine

SPECIFICATION	UNIT	XZ7550C
TABLE SIZE	MM	800×240
SPINDLE SPEED RANGE	R/MIN	115-1750
TABLE TRAVEL	MM	400×200
MAX.DRILLING DIA.	MM	30
MAX. END MILLING WIDTH	MM	100
MAX. TAPPING DIA.	MM	M16
MAX.VERTICAL MILLING DIA.	MM	25
DISTANCE FROM SPINDLE NOSE TO TABLE SURFACE	MM	70-420
SPINDLE TRAVEL	MM	120
SPINDLE MOTOR POWER	KW	0.85/1.5
OVERALL DIMENSION(L×W×H)	MM	1290×1140×2100
MACHINE WEIGHT	KG	800

---
