2121 CNC-Controlled Sharpening Machine for Wood Cutting Saw Blade Grinding

Product Description

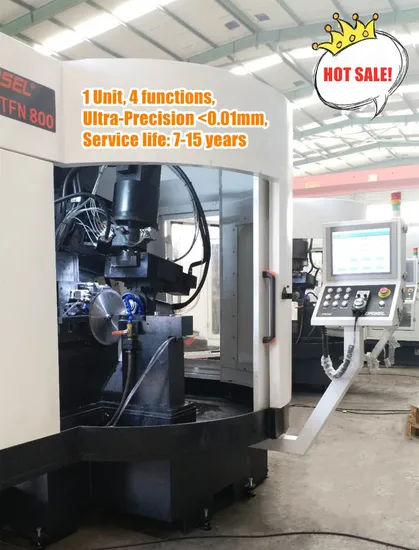

CNC Circular Saw Blade Grinding Machine for TCT Cold Saws Sharpening
High-level productivity & precision grinding machine for carbide tools.
• Saw Dia: <800mm
• Function: Tooth Top/Hook/Face/Notch/Groove angle sharpening
• Precision: <0.002mm
• Model: TNF 800
• High precision, more function & more productivity, PURCHASE is cost-effective.
• Cooperation Company
Advantages of sawblade grinding machine • More precision- grinding precision: <0.002mm,be impressed by the higher accuracy. • More efficiency- experienced productivity on a higher level • More user comfort- simplify your work • More flexibility-for precision in any requirement
• More Function- grinding TOP/HOOK/FACE/NOTCH/GROOVE angle of sawblade
Presetting for tooth TOP/FACE/NOTCH grinding
CNC Control- High Precision is flexible to control ultra-precision grinding as requirement.

3-D Graphics Grinding Machine
Technical Premeter

Saw Blade Diameter	120~810mm
Hook Angle	25°~-30°
Top Angle	8°~ 30°
Top Chamfer Angle	45°~ -45°
Face Chamfer Angle	30°~ -30°
Bore Diameter	12~120mm
Pitch	2~80mm
Top wheel size	Φ125mm*Φ32mm*16mm
Notch wheel size	Φ125mm*Φ32mm*9mm
Face wheel size	Φ150mm*Φ32mm*14mm
Wheel Speed	2500~3500RPM
Grinding Speed	6-30s/tip
Power	5KW
Dimensions	2500*1800*2200mm
Weight	3680kg

Configuration

Ball Screw	THK (JAPAN)
Crossed Roller Guide	THK (JAPAN)
Pneumatic Parts	SMC(Japan)
Servo Motor	Inovance
PLC	Inovance ARM600
Harmonic Drive	Inovance

FAQ 1. How to chooce best saw blade grinding machine? - Best grinding machine process tools with higher precision & long service life. 2. How is the performance of TORSEL saw blade grinding machine? - TORSEL saw blade grinding machine process tool with excellent precision <0.01mm,the service life is upto 7-15 years. 3. Whats your cooperation companys?

---
