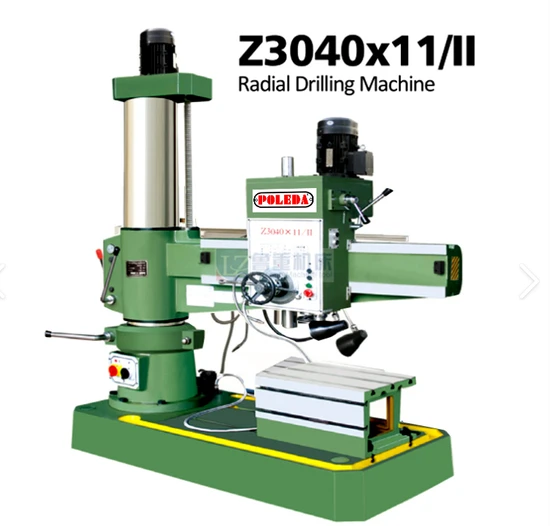

Z3040 Multi-Functional and Efficient Mechanical Radial Drilling Machine

Product Description

Product Description
Introduction to Rocker Arm Drill Products
The radial drilling machine is a versatile hole processing tool, expertly crafted for tasks such as drilling, reaming, reaming, tapping, and face trimming. Designed for both single and mass production of large parts with multiple holes, this indispensable machine is a staple in general machining workshops. Key features include:
Structural Features: The ingenious design of the radial drilling machine allows the rocker arm to rotate and elevate around the column while the spindle box moves horizontally. This results in easy operation, remarkable flexibility, and a broad application spectrum for large and heavy workpieces.
Classification: Radial drilling machines are categorized by clamping structures into hydraulic and mechanical types. They can be further differentiated based on drilling size and mechanical principles into various models and specifications, catering to diverse processing needs.
Technical Parameters: Critical technical parameters include maximum drilling diameter, spindle-to-column distance, spindle end-to-worktable distance, and spindle rotational speed, all of which dictate the machine's processing capacity and efficiency.
Safety Performance: Equipped with comprehensive safety measures like spindle overload protection, travel limit switches, and safety nuts on lifting screws, the radial drilling machine prioritizes secure operational practices.
Application: This versatile radial drilling machine serves a multitude of machining sectors, adeptly handling tasks such as drilling, reaming, countersinking, tapping, boring, and more, making it an essential piece of equipment in machining and production environments.
Operation and Maintenance: Offering both manual and numerical control operation modes, with options for mechanical and hydraulic transmission, proper operation and diligent maintenance are crucial for optimal performance and longevity.
In summary, the radial drilling machine stands out as a multifunctional, efficient, and safe hole processing solution. It's perfect for processing and producing a wide range of metal parts, making it an indispensable asset in the modern machining workshop.
Product Parameters
Performance of Rocker Arm Drill Products
Radial drilling machines are part of a new generation of multifunctional products, designed with exceptional performance, safety, reliability, ease of maintenance, high precision, and robust rigidity. Featuring hydraulic variable speed mechanisms to minimize auxiliary time, these machines offer user-friendly control. The hydraulic clamping mechanism ensures reliable operation, while quenched components maintain precision and extend service life. Enhanced safety features and outer column protection ensure safe use.
In terms of structure, radial drilling machines are classifiable into hydraulic and mechanical types. Hydraulic machines are particularly adept for operations involving large, porous parts, whether for single items or mass production, and are a common fixture in machining workshops.

Product Name	Radial drill	Radial drill	Radial drill
Product model	3040*13/16	3032	Z3050*13/16
Maximum diameter of hole	casting40/Steel part35mm	casting32/Steel part27mm	casting50/Steel part45mm
Distance from spindle end face to table	430-1210mm	360-1050mm	360-1300mm
Distance from spindle center to column busbar	300-1100mm	260-1050mm	260-1050mm
Spindle travel	220mm	120mm	220mm
Main shaft hole cone	4Mohs	4Mohs	4Mohs
Spindle speed range	34.78.145..75130.560.260.430.920.380.760.1280rpm		34.78.145..75130.560.260.430.920.380.760.1280rpm
Spindle speed class speed	12	6	12
Spindle feed range	0.10-0.25rpm	0.10-0.25rpm	0.10-0.25rpm
Spindle feed series	3	3	3
Swing arm rotation Angle	Plus or minus 180 degrees	Plus or minus 180 degrees	Plus or minus 180 degrees
motor power	2.2kw	1.5kw	4kw
Machine weight	1400kg	9600kg	2400kg
Overall dimension	1500*705*2020mm	1350*705*1880mm	1950*810*2450mm

Detailed Photos
Certifications
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine and so on .
4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.
5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers.
10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac.

---
