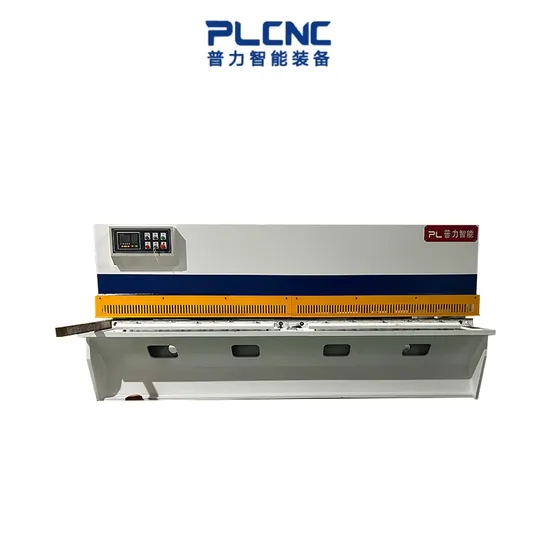

High Quality CNC Cutter Machine Swing Beam Shear Guillotine Sheet Hydraulic Shearing Machine Metal Sheet Shearing Machine

Product Description

Product Parameters

Specification and model	Scissorable board thickness(mm)	Scissorable board width(mm)	Stroke times	Rear material travel(mm)	shear angle(°)	Workbench height(mm)	power(kw)
			(time/min)
QC11Y 6×2500	6	2500	16~35	20~600	30′-1°30′	800	7.5
QC11Y 6×3200	6	3200	14~35	20~600	30′-1°30′	800	7.5
QC11Y 6×4000	6	4000	10~30	20~600	30′-1°30′	800	7.5
QC11Y 6×5000	6	5000	10~30	20~800	30′-1°30′	900	11
QC11Y 6×6000	6	6000	8~5	20~800	30′-1°30′	1000	11
QC11Y 8×2500	8	2500	14~30	20~600	30′-2°	800	11
QC11Y 8×3200	8	3200	12~30	20~600	30′-2°	850	11
QC11Y 8×4000	8	4000	10~25	20~600	30′-2°	900	11
QC11Y 8×5000	8	5000	10~25	20~800	30′-2°	1000	15
QC11Y 8×6000	8	6000	8~20	20~800	30′-2°	1050	15
QC11Y 12×2500	12	2500	12~25	20~800	30′-2°	840	15
QC11Y 12×3200	12	3200	12~25	20~800	30′-2°	900	15
QC11Y 12×4000	12	4000	8~20	20~800	30′-2°	940	15
QC11Y 12×5000	12	5000	8~20	20~1000	30′-2°	1000	22
QC11Y 12×6000	12	6000	6~20	20~1000	30′-2°	1060	30
QC11Y 16×2500	16	2500	12~20	20~800	30′-1°30′	840	22
QC11Y 16×3200	16	3200	12~20	20~800	30′-1°30′	900	22
QC11Y 16×4000	16	4000	8~15	20~800	30′-1°30′	940	22
QC11Y 16×5000	16	5000	8~15	20~1000	30′-1°30′	1000	30
QC11Y 16×6000	16	6000	6~15	20~1000	30′-1°30′	1100	37
QC11Y 20×2500	20	2500	10~20	20~800	30′-3°	900	30
QC11Y 20×3200	20	3200	10~20	20~800	30′-3°	950	30

Performance characteristics
Structure and performance characteristics:
The host adopts QC11Y series shearing machine.
★ Optional Dutch Delem shearing machine dedicated CNC system, servo motor and other components are imported with original equipment.
★ Rear blocking material, using ball screw linear guide transmission with high precision (optional pneumatic rear feeding device).
The CNC system has various additional functions such as compensation and automatic detection, which can accurately ensure the cutting accuracy of the sheet metal.
The rolling material support device can reduce frictional resistance while ensuring that the surface of the workpiece is not scratched.
Gear pump Product Description
Detailed Photos
Features: linear conjugate internal gear pump in the hydraulic industry is called "never wear oil pump", used for high, fine, sharp hydraulic system. Several famous companies in the world take it as a brand product to develop and promote, to ensure the leading position in the hydraulic industry. Compared with vane pump and plunger pump, linear conjugate internal gear pump has low noise, no pulsation, long life and other excellent performance.
Low noise: linear conjugate internal gear pump its outstanding characteristics for special tooth shape design. Gear tooth gallery is a straight line, ruler ring tooth gallery is a straight conjugate line, almost no trapped oil area when working, even at high speed, the audio is still smooth and peaceful.
Long life: the long life characteristics of the linear conjugate internal gear pump depends on the wear resistance. There is a layer of oil film protective layer between the functional parts of the internal mechanical surface, almost no wear. Even if the general hydraulic oil is used, it is not easy to wear parts. In addition, the principle of double pressure bearing pressure difference increases the working pressure at the same time, but also improves the working conditions of the pump, prolong the service life of the pump.
Siemens electrical components
Spare parts lists

Name			Type
Blade	Material		6CrW2Si forging
	Manufacture		Shanghai heli blade/renaser
Motor	Type		Y type
	Manufacture		Nantong tongde
Electric system	Self choose	Type	E21S
		Manufacture	Estun
	Main electrical elements		SIEMENS
Hydraulic system	pump	type	Gear pump
		Manufacture	Oulide/wote
	valve	Manufacture	nantong
	Cylinder	Piston rod	Forgings, heat treatment HRC48-50
		Manufacture	Jianhu huaxing
		sealing	American pike/Japanese walka
Back gauge	Screw(optional)		Taiwan HIWIN precision ball screw
	Guide rod		Double guider rod
	baffle		Square pipe welding of whole steel plate

---
