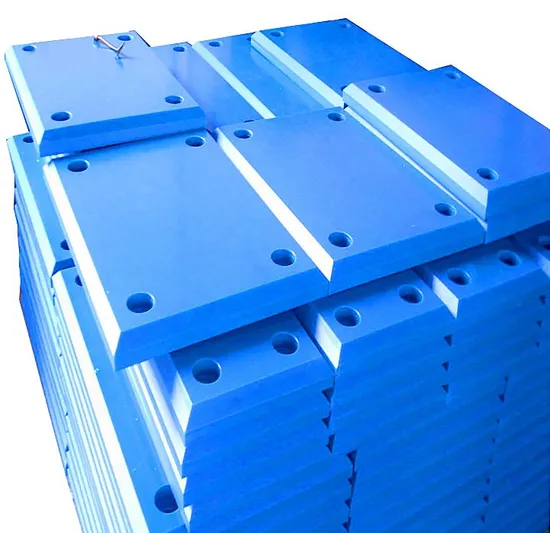

Anti Corrosion UHMWPE Marine Fender Plate HDPE Fender Facing Pad

Product Description

Anti Corrosion UHMWPE Marine Fender Plate HDPE Fender Facing Pad
Product Description
HDPE Fender Facing Pad has wide application in waterway, harbor or dock. HDPE Fender Facing Pad does not rot as the wood,or rust as the steel so that it perform much better. Main Characters of Marine Fender Facing Pad
Highest abrasion resistance of any polymer, 6 times more abrasion resistant than steel
Very low water absorption
Excellent impact resistance
Good Corrosion & Chemical resistance
Noise-absorption& Vibration-absorption
Product Parameters

Property	Unit	Value
Density	g/cm3	0.93-0.96
Average molecular weight	g/mol	3million- 10 million
Tensile strength (23°C in air)	MPa	22
Breaking strength	MPa	42
Charpy impact strength (notched)	mJ/mm2	No break
Ball indentation hardness	N/mm2	38
Shore D hardness	--	63-70
Abrasion	%	70-80, steel = 100
Static Friction Coefficient	--	≤0.2
Kinetic Friction Coefficient	--	≤0.15
Water Absorption	--	<0.01
Elongation at break at 23 degress	%	≥300
Temperature resistance	°C	-269 to +85
Melting Temperature	°C	130-140

Wear Resistance of marine fender facing pad
Materials	UHMWPE	PA6	PA66	PTFE	POM	HDPE	Brass
Index No. For slurry abrasion	1	4	5	5	6	10	27

Impact Absorption of marine fender facing pad
Materials	UHMWPE	HDPE	PC	ABS	PA66	POM
Impact	≥140	27	60~100	20~60	60~90	20

Self-lubricating of marine fender facing pad
Materials	Dynamic Friction Coefficient
	Lubrication Free	Water Lubrication	Oil Lubrication
UHMWPE	0.07~0.22	0.05~0.10	0.05~0.08
PA66	0.15~0.40	0.14~0.19	0.06~0.11
POM	0.15~0.35	0.10~0.20	0.05~0.10
PTFE	0.04~0.25	0.04~0.08	0.04~0.08

Main Performances of HDPE Fender Facing Pad
UV resistance, suit to use in outside
High impact resistance, protect the harbor and dock
Excellent abrasion resistance
Low friction coefficient
Waterproof, durable
Working temperature rang from -40ºC to 85ºC
Cheaper than UHMWPE fender facing pad
UHMWPE Fender Facing Board
UHMWPE(Ultra-high Molecular Weight Polythene) fender facing board is harder than HDPE Fender Facing Board. If the port handling capacity is huge, we recommend to choose UHMWPE fender facing board. Compared with HDPE fender facing board, UHMWPE fender facing board is much more stiff and its working temperature rang from -269ºC to 85ºC.
Advantages of UHMWPE Fender Facing Board
Highest abrasion resistance of any polymer, 6 times more abrasion resistant than steel
Very low water absorption
Excellent impact resistance
Good Corrosion & Chemical resistance
Noise-absorption & Vibration-absorption
Company Profile
Quality-oriented, Customer supreme & Service Paramount.
Henan Yiqi Plastic is engaged in manufacturing and selling plastic items over 15 years even nearly 20 years. Our main products are HDPE sheet, PE sheet, PP sheet, UHMWPE sheet, plastic cutting board, fender facing pad, synthetic ice rink, temporary road mat and other plastic parts. Manufacturing technique includes extrusion, injection and mould pressing, also undertaking welding, CNC carving such post processing and so on.
Henan Yiqi Plastic Products Co., Ltd's new office is located in Zhengzhou, the capital of Henan province. Technology R&D team keeps pursuing innovation and enriching product performance, greatly enlarging the application of our products.
Henan Yiqi Plastic's products have been exported to Europ, Australia, North America, Southeast Asia, South America and other regions. Henan Yiqi Plastic look forward to going farther with you together.
Packaging & Shipping
FAQ 1.Q: What are your terms of payment?A: The payment method is flexible. T/T, LETTER of credit and other payment methods are accepted.
30% advance payment and 70% balance payment can be openly discussed.2.Q: Are there complete inspection facilities?A: Yes, of course. We shall strictly check the quality of the goods before packing.3.Q: Are you providing samples free of charge?A: Yes, we offer samples free of charge, but we don't pay postage.4.Q: What about the after-sales service?A: You can rest assured that we have A special production plant and the quality of our products is strictly controlled. In addition, if our products cause you any trouble, we will completely solve it.5.Q: Other special questions:A: Contact me and we'll give you the details.

---
