Small Bench Drilling Machine Z4116 Z4120 Industrial Type Bench Drill Press Machine

Product Description

Small Bench Drilling Machine Z4116 Z4120 Industrial Type Bench Drill Press Machine
Product Description
Product description:
1. Both spindle head, column and base using high quality cast iron, strong and everlasting.
2. High precision with excellent feature, widely use at instrument and camera area.
Main technical specifications:

Specifications	Z4112A/4116A	Z4116	Z4120/Z4125
Max. Drilling capacity(mm)	12.7/16	16	20/25
Diameter of column(mm)	70	85	85
Spindle travel(mm)	100	125	125
Distance spindle axis to column surface(mm)	193	240	240
Max distance spindle nose to worktable(mm)	95	297	367
Max. Distance spindle nose to worktable(mm)	320	560	630
Spindle taper(mm)	B16/MT2	MT2	MT2/MT3
Spindle speeds range(r/min)	400-4090	365-3150	365-3150
Spindle speeds series(r/min)	5	5	5
Dimension of worktable surface(mm)	250×250	280×300	280×300
Dimension of base(mm)	495×375	590×375	590×375
Overall height(mm)	850	1127	1127
Motor(W)	550/750	750	750/1100
G.W/N.W(kg)	120/102	165/140	165/140
Packing size(cm)	83×42×92	83×42×92	82×48×102

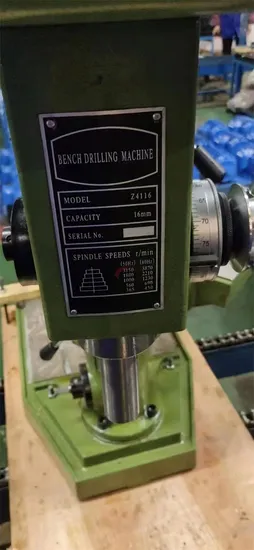

Detailed Photos

Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
