10inch USA Cone Ferrite PA Sound PRO Audio Speaker

Product Description

Ruizheng Speakers primary line consists of high frequency drivers and coaxial components, and cone drivers. We have made a strong commitment to provide a well-balanced line of Low Frequency drivers that range from 6.5" to 24", as well as a very complete line of High Frequency drivers. Our engineers have optimized each design with CLIO software to ensure each design operates to its fullest potential time and time again. From nightclubs, to stadiums, to concert halls around the world, our products are chosen based on their reliability, consistency and most of all for their outstanding sound quality.
https://ruizhengsound.en.made-in-china.com/product/ZXTmgShlXFUx/China-3inch-Neo-1-4inch-Throat-High-Spl-Tweeter-Compression-Driver-Audio-Speaker.html

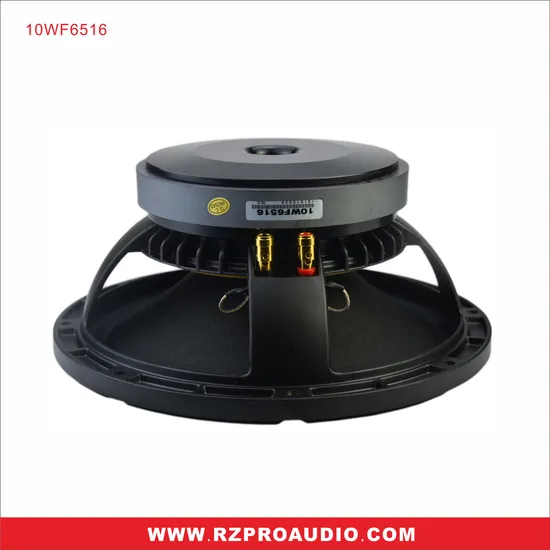

MODEL 10WF6516
Specifications			Thiele Small Parameters
TYPE	Mid-bass		Fs	76 Hz
Nominal Diameter	254 mm/10 in		Re	10.5ohm
Rated impedance	16 ohm		Qms	4.13
Nominal (AES)	300 W		Qes	0.44
Continuous Program	600 W		Qts	0.39
Sensitivity(1w/1m)	95.8 dB		Vas	22.6L
Frequency Range	76Hz-3500Hz		Sd	0.035 m2
Voice Coil Diameter	65 mm/2.5 in		Mms	33.8 g
Voice Coil Material	Copper out/in		BL	19.3 T.M
Mounting lnformation			Shipping lnformation
Overall Diameter	φ261mm/φ10.3 in		Net Weight ( 1unit)	4.3 kg
Bolt Circle Diameter	φ246 mm/φ9.7 in		Shipping Weight ( 4unit)	20.5 kg
Mount Baffle Cut-out	φ230 mm/φ9.1 in		Package Size ( 4unit)	59x30x33cm
Depth	117 mm/4.6 in
Bolt Hole Diameter	8-φ6.5mm/8-φ0.26 in

Founded in 2011, ruizheng audio is designing and distributing amplifier, speakers, supplying OEM/ODM components to many of the professional audio brands in the market today.

---
