Automatic Box Film Package /Pharmaceutical & Medical Carton Packing Machinery /Automated Wrapping Machine

Product Description

Automatic Box Film Package /

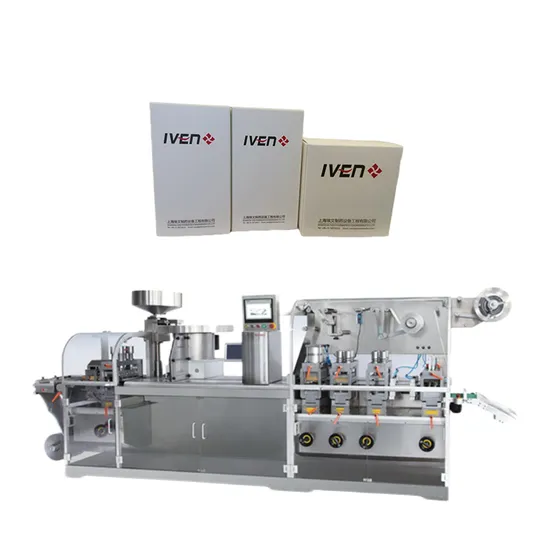

Pharmaceutical & Medical Carton Packing Machinery /Automated Wrapping MachineIVEN Blister packaging and cartoning machines are essential equipment used in the pharmaceutical, healthcare and food industries for the efficient and automated packaging of products. They play a vital role in ensuring product safety, extending shelf life and improving overall product presentation.
Application:1).This machine is applied to Alu-Pvc and Alu-Alu packing of medicines, for example sealed blister packing of capsules and tablets of various specifications.
2).Applied to sealed blister packing of various syringes, ampoule bottles and medical products.
3).Applied to sealed blister packing of food, electronic parts, hardware products, etc.
Main Features:
1).Main drive: main motor located at the back of machine ,easy for maintenance. Synchronous belt drive instead of chain belt drive to reduce oil stain.
2).Guide rail installation method: guide rail of the cabinet is installed in cantilever way .It is convenient for the operator to remove the dropped medicine.
3).Mould base installation and adjustment: adopt lathe type guide rail and pinion and rack adjustment way. with position indicator and scale ruler for mould position adjustment.
4).All moulds including forming mould, heat-sealing mould, batch number emboss printing mould, punching mould can be orientation-guide pushed into its position by hand and mould handle rocked to finish mould change fast with no need wrench or other tools.
5).Adopt air shaft to install PVC material and aluminum foil, adopt PVC connection device to change roll material more faster.
6).PVC loading adopt roller trace to avoid PVC material being over-stretched during material pulling.
Details of Each Station
Main Technical Parameter

Punch frequency (time/min)	40-50
Capacity (blister/h)	4200-15000
Max forming area depth (mm)	260*120*26
Stroke(mm)	20-120
Standard blister (mm)	80*57
Air supply	0.4-0.8
Total power	380/220v 50hz 10kw
Main motor power (kw)	2.2
PVC hard pieces (mm)	0.15-0.5*270
PTP aluminum foil (mm)	0.02-0.35*270
Cold forming aluminum foil (mm)	0.14-0.20*270
Dialytic paper (mm)	50-100g/m2*270
Mould cooling	Tap water or recycle water
Overall dimension (mm) (L*W*H)	4000*850*1700
Weight (kg)	2800

IVEN Can Do !IVEN provides integrated engineering solution for worldwide pharmaceutical and medical factory include the clean room, auto-control and monitoring system, pharmaceutical water treatment system, solution preparing and conveying system, filling and packing system, automatic logistics system, quality control system and central laboratory and etc. According to the pharmaceutical industry's regulatory requirements of different countries and customer's individual demand, IVEN carefully customizes engineering solutions of turnkey projects and helps customers to win the target markets, IVEN creates value to customers.
Turnkey Project for IV Solution Plant from A to Z
• Project Design
• Pharmaceutical Water Treatment
• Solution Preparation
• IV Solution Production Line
• Sterilization
• Inspections Packing
• Clean Room & HVAC
• Stability Chamber
• Laboratory Instruments
• Utilities
• Documentation & Qualification
• Installation, Commissioning, Training
• Service
