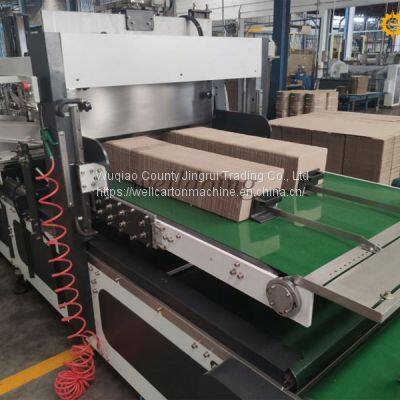

automatic paper cardboard partition assembly machine
1. partition assembler machine suitable for the auto insertion of all kinds of carton clapboard.
2. vertical direct using vacuum adsorption feeding, landscape orientation using servo feeding, quick and accurate.
3. longitudinal and transverse to cross the two pieces of paper at the same time.
4. longitudinal feeding shaft adopts electric lifting
5. landscape orientation feeding worktable lifting adopts electric adjustment.
6. electric adjust the clapboard height in landscape orientation.
7. output in double work positions, high efficiency and energy saving.
8. partition assembler is touch screen control, electric adjust the clapboard parameters.
9. comprehensive using of pneumatic and electric control, to ensure the advancement of machine control.
10. The automatic carton partition assembly machine using compressed air strorage tanks for gas centralized supply, gas supply pressure stability, enough gas source. the gas device get the gas from the primary tracheal, independent control, no influence between each other.
11.automatic partition assembler equipment equipped with fault detection device, auto stop the machine when paper blocking.
Finished picture :
technical parameter:
| Name | Unit | Date |
| Horizontal inserting width: A | mm | 120~900 |
| Lengthways sheets length: B | mm | mm210~450 |
| Clapboard Height: H | mm | 80~300 |
| Lengthways clapboard distance: D | mm | 20~400 |
| Horizontal clapboard distance: C | mm | 45-850 |
| Lengthways sheets No. | unit | 1-6 |
| Horizontal clapboard No. | unit | 1-21 |
| Carton inserting mouth width：F | mm | ＞board thickness |
| Carton thickness:K | mm | 1.5~8mm |
WELLDOING TRADING Co. Ltd. is a manufacturer + sales and after-sales company, which is mainly engaged in large-scale semi-automatic chain-bar water-based printing machine,automatic flexo printer slotter die cutter stacker machine , high-speed high-definition paper box printing and slotting die-cutting machine, 2 layers corrugated production line, box-sticking machine, Tying Machine ,Automatic Partition Assembler Machine,automatic carton box folder gluer machine, semi-automatic carton floder gluer machine paper tube making machine, flexo ink printing wastewater treatment machine 3,5,7ply corrguated cardboard production line and so on.
Our Services
1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
FAQ
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .
2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.
3. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.
If you are also interested in this machine,please don’t hesitate to contact us:
Overseas manager: Tom Wang
Email:cartonmachine.tomwang@aliyun.com
Phone/Wechat/Whatsapp:+86 13303078975
>>
