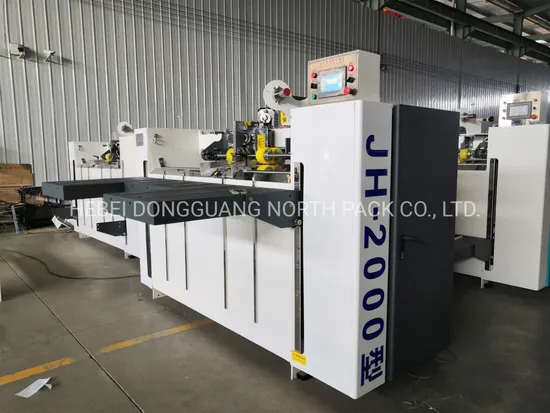

Semi-auto Corrugated Box Stitching carton making Machine

Product Description

Product introduction:
--France Schneider imported four servo drive, precision accuracy, reducing the mechanical transmission part, which can effectively reduce the failure rate of the machinery.
--Weinview touchscreen operation parameters.
--The whole control system adopts OMRON PLC control system.
--After the electric baffle, using step motor drive, the size is accurate, the reansform size more convenient.
--The photoelectric and proximity switches using the OMRON brand.
--The bottom mold, wolfram steel blade used in Japan.
--The entire set of nail head all adopt the special steel manufacturing, computer gongs precision machining.
--It can stitch single nail, double nail and strong nails, can be suitable for different customer requirments of different kinds of nails.
--The reansform carton size and adjusting nail carton from just one minute can be completerd, greatly saves time and is convenient to operate.
--It can stitch a lid box & carton no cover (If have uncovered box need stitched,please note when ordering machinery)
--The front end to send automatic counting paper, paper feeding platform is provided with the photoelectric induction device, automatic rising feeder.
--The following section has the function of automatic counting, finished cartons can be set according to the number(1-99) sub stack sent to the conveying machinery termainal, convenient bunding.
--The machine speed: 500 nails per minute.
--The nails spacing:30-120mm sdjustable.
--The working table lifting effective height: 900mm
--The machine covers an area of size : host 2.8m*2.7m*2m
--The machine weight: 1800kg
--The whole order adjustment, can store 500 orders.
Main configuration:

Name	Brand	Origin
Nailing servo	Schneider	French
Freeding servo motor	Schneider	French
PLC, photoelectric switch and proximity switch	Omron	Japan
Contactor,circuit breaker	Siemens	Germany
Reducer	Liming	Taiwan
Intermediate relay	Schneider	French
Nail head		japan
Cylinder,solenoid valve	Airtac	Taiwan
Touch screen	Weinview	Taiwan
The blade		Germany
Bottom die		Germany
The gear reducer	OTT/ZD	Shanghai
Worm gear and worm reducer	ZHENYU	Hangzhou
Bear	C&U	Jiangsu

Specification:

Max. paper size	3980mm
Min. paper size	740mm
Max. paper height	3000mm
Min. paper height	250mm
Max. rock cover	50mm
Min. rock cover	560mm
Max. carton width	850mm
Min. carton width	120mm
Max. carton length	1140mm
Min. carton length	250mm
Max. high	2000mm
Min. high	150mm
Max. width of the tongue	40mm
Max. hight of feeder	900mm
Width	2850mm
Weight	1800kg
Speed	500
Number of stitching	1-99

Related Machine: Pedal model Stitching Machine
Packaging & Shipping
After the machine is finished and running well, it will be coated with anti-rust oil, which makes the machine not easy to rust in the container, and winding film to prevent moisture. Each unit of the machine will be fixed in the container to ensure a stable and safe arrival at the destination.
Our Services
1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
PS: Normally our machines are uneasy to broken because of our
professional machine making team and strict QC team, we will
also send you our manual and video, what you need to do is just
learn some basic thing such as machine maintenance.
FAQ 1. Are you a factory or trading company?
We are both a factory and a trading company in this field .
2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.
3. Where is your factory located ? How can I visit there?
Our factory located in Dongguang County, Hebei Province, China., near to the
capital city Beijing and port Tianjin. You can fly to Beijing airport directly and we
will pick you up there.
4. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.
Contact Information:
If you are interested in our products,
please fell free to contact and visit me.
You are welcome all the time!
ABOUT US:
Hebei Dongguang North Pack Co.,Ltd is located in Hebei Province Dongguang County, Packaging Machinery Industry Area. We are specialized in the production of Carton packaging Machinery . We have advanced production processing equipment and high-quality technical and management personnel. Mainly produces3/5/7 layer Corrugated Cardboard Production Line, medium and high speed FLEXO Ink Printing Machine, Slotting Machine, Die-cutting Machine, Stitching Machine, Gluing Machine, stitching machine and other related series equipment. Our company has the import and export rights, products have been exported to Russia, Iran, Turkey, Egypt, India, Pakistan, the United Arab Emirates, Mesico, Brazil and other countries and regions.
