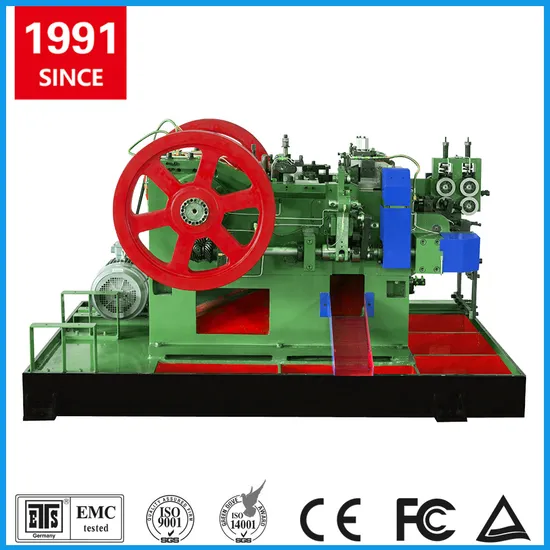

2 Mold Die 4 Blow Multi Station Screw Cold Former Heading Forming Bolt Making Machine

Product Description

Dongguan Arida Machinery Equipment Co., LTD, a company specializing in manufacturing fastener machines, is located in the hinterland of the Pearl River Delta, Zhaoqing Dawang Industrial Park, a national high-tech development zone, was founded in 1991. Which covers an area of 150 acres/ 100000 square meters and employs over 400.
After years of continuous development, we completed its transformation and upgrading in 2008, investing heavily in precision processing machines, providing reliability for manufacturing high-precision machine parts. High tech has hired management personnel with Taiwanese technology and trained a group of high-quality, skilled, and responsible technical personnel, striving to combine Japanese and Taiwanese technology to create several major series of products including:
1.6 stations cold head heading machines,
2.High speed multi station molding machines (2-die 2-blow, 3-die 3-blow, 4-die 4-blow, 5-die 5-blow etc.)
3.Multi variant molding machines (1-die 2-blow, 3-die 6 blow, 2 die-4 blow, 2-die 3-blow).
4.Riveting machine series.
5.High speed thread rolling machine series.
6.At the same time, non-standard cold forming machines can be produced according to customer requirements.
7. High speed press machines.
To ensure quality, the main parts of the machines are made of imported materials.
ARIDA's services are spread all over the world. Since its establishment, we have been striving for survival through quality and development through brand.
Provide professional and timely after-sales service to customers.
2 Mold die 4 Blow Multi station screw Cold Former heading forming Bolt Making Machine Specifications:

No.	Model 2-die 4-blow	Max Cut Diameter (mm)	The main slide stroke (mm)	Max Withdraw Material Length(mm)	Main Motor (KW,Poles)	The oil pump (KW)	Productivity (Pcs/Min)	Weight (Ton)	Packing size L× W×H (m)
1	BH2450L	Φ20	240	220	22/8	1.1	25-30	16	6×2.2×2.3
2	BH2425	Φ10	150	100	11/4	0.75	40-60	7.5	3.6×1.8×1.8
3	BH2420	Φ8	140	100	5.5/6	0.75	40-50	4.5	2.8×1.5×1.5
4	BH2415	Φ6	92	70	3/6	0.75	50-70	2.3	2.3×1.3×1.3

(The price of the website platform is not the actual quotation, please contact us for the specific quotation according to your products and suitable machine models).

---
