Product Details
Product Description
Product Description

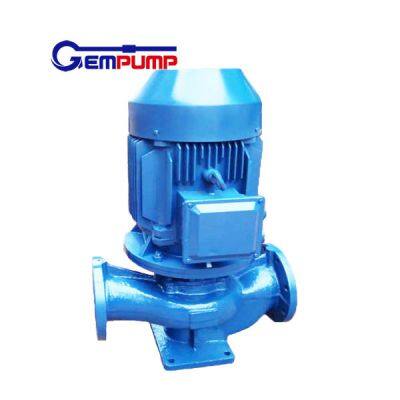

Pipeline Centrifugal Pump Water Horizontal Centrifugal Pump Single Stage Single Suction Centrifugal Vertical Inline Booster Pump
Summarize:
1. ISW/ISG water pump is a high-effective energy-saving product designed by Gempump China.
2. Stable running, low noise, high concentricity of components. Bearings of low noise are used for the motor, the impellers are of best dynamic and static balance, no vibration at running and the environment thus being improved.
3. No leakage. The shaft is mechanically sealed with carbide alloy wearable material, settling the serious leakage of the filling seal of a centrifugal pump, extending the duration and ensuring the operation place clean and tidy.
4. Widely used in industrial and cities' water supply and drainage, high buildings' booster water supply, gardens irrigation, fire-fighting booster, remote water supply, warming systems, circular booster of cold&hot water in bath rooms as well as in competitions of equipments.
5. The pump, according to the operation condition of the worksite, may be vertically, horizontally etc. and also according to the requirements for the flow and stroke, mounted in parallel and/or in series to increase the needed flow and stroke.
6. The flow range is 1.1-2400m3/h and the stroke range 8-160m and there are basic type, by-pass type, A B C cutting type etc. And per the different flow medium and temperature, IRG/IRGB/ISWR hot water pump, IHG/IHGB/ISWH chemical pump and YG/YGB/ISWB oil pump etc. Series products. of the same type and same property data have been designed and made.
The ISG vertical inline centrifugal pump is an excellent hydraulic model selected by our company's scientific and technical personnel and internal water pump experts. It adopts the performance parameters of the IS type centrifugal pump and is designed by ingenious combination on the basis of general vertical pumps.
At the same time, suitable hot water, high temperature, corrosive chemical pumps and oil pumps are derived from the ISG type according to the use temperature and medium.
ISW horizontal inline pump is used for conveying clean water and other liquids with physicochemical properties similar to clean water. It is suitable for industrial and urban water supply, pressurized water supply of high-rise buildings, garden sprinkler irrigation, fire pressurization, long-distance transmission, HVAC refrigeration cycle, bathroom and other cold and warm water cycle pressurization and equipment matching. The service temperature T ≤ 80 ºC.
· ISWR horizontal hot water inline pump is widely used in: metallurgy, chemical industry, textile, papermaking, and hotels and restaurants and other boiler hot water pressurized circulating transportation and urban heating systems, ISWR type operating temperature T≤120ºC.
· ISWH horizontal chemical inline pump is used to convey corrosive liquids without solid particles and with viscosity similar to water. It is suitable for petroleum, chemical industry, metallurgy, electric power, papermaking, food, pharmaceutical and synthetic fiber departments. The service temperature is - 20 ºC ~ + 120 ºC.
· ISWB horizontal inline oil pump, used for conveying gasoline, kerosene, diesel and other oil products or flammable and explosive liquids, and the temperature of the conveyed medium is -20ºC~+120ºC.
Shijiazhuang Jiemu Machinery Equipment Co., Ltd is one of the leading manufacturers and exporters in the field of industry pumps with manufacturing facilities in mainland China. We are specialized in slurry pump, magnetic pump, pipeline booster pump, centrifugal pump, screw pump, submersible pump, chemical pump etc.
>>
