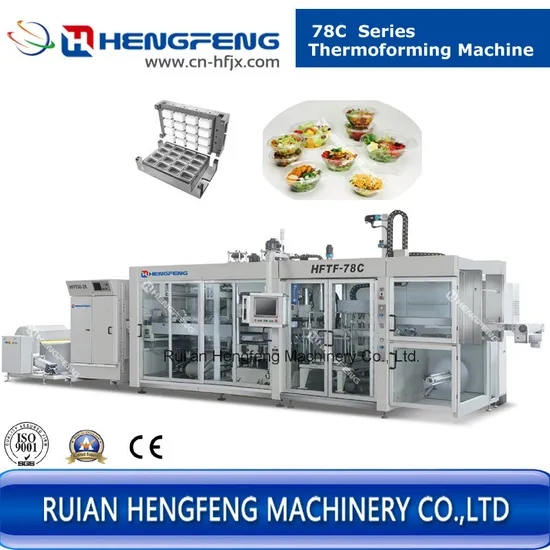

Food Container with Punching Thermoforming Machine

Product Description

food container with punching thermoforming machine
Application
Thermoforming Machine are mainly produce upscale plastic containers like bowls,square boxes,lids,trays,etc. It is suitable for PP,PS,OPS,PVC,PETand PLA
material.
Feature
Have four stations:Thermoforming-Punching-Cutting-Stacking.
All movements driven by servo motor.
Feeding,forming,cutting and stacking processing are compete production automatically.
Mould with rapid change device,easy maintenance.
Forming with 6bar air pressure and vacuum.
Maximum speed 50 cycles per minutes.
Main Specification

Therforming Station
Max. tool size	HFTF-78C
Max. tool size with pneumatic clamp frame	750x560mm
Max. pos/neg depth	120/120mm
Max. sheet width	820mm
Max. sheet length	620mm
Clamping force	750 KN
Sheet Thickness Range	0.2-2.5mm
Max. Speed	50Cycles/min
Upper/Lower heating	55/55 KW
Punching Station
Max. punch dimensions	750x560mm
Platen clamping force	350KN
Upper/Lower platen stroke	140/140mm
Cutting Station
Max. cut dimensions	750x560mm
Platen clamping force	750KN
