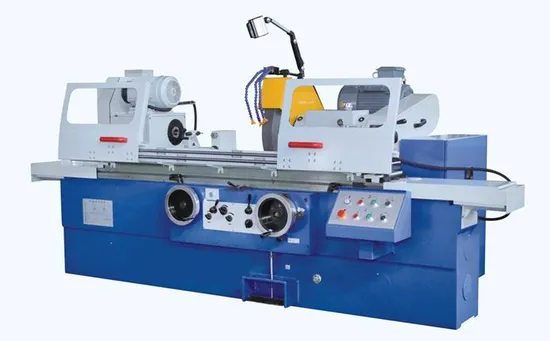

Universal Cylindrical Grinding Machine M1332b/Mc1332b with Accuracy It6-It5

Product Description

Main functions and features:
1.M1332B cylindrical grinding machine is designed on the basis of M1332A cylindrical grinding machine.It is suitable for grinding cylindrical or conical parts, for its accuracy IT6-IT5.
2.Worktable longitudinal travel driven by hydraulic at infinitely-variable-speed, or driven by hand wheel.Lubrication for hole throttle unloading form.
3.Wheel head cross travel provided with hydraulic rapid advance and withdrawal, manual micro feed. And feed grinding wheel automatic cycle function.
4.Workpiece, wheel, oil pump and coolant pump respectively driven by their individual motor.
5.Two sets of sliding bearing consisting of four-shoes used as wheel spindle bearings. The spindle bold, increased motor,high grinding efficiency.
6.Wheel dresser mounted on the tailstock,and hydraulic tailstock top back device.
7.The machine with the moving parts of electrical, hydraulic chain, safe and reliable operation.
8.MC1332B Series table moves using hydro static guideway.
Technical Parameters:

Model No.	M1332Bx1000/1500/2000/3000	MC1332Bx2000/3000
Item No.
Specifications
Grinding length	1000/1500/2000/3000 mm	2000/3000 mm
Grinding diameter	Ø8-320 mm	Ø8-320 mm
Center height	180 mm	180 mm mm
Max.workpiece weight	150 kg	500 kg
Worktable speed	0.1~4 m/min	0.1~4 m/min
Wheel peripheral velocity	38 m/s	38 m/s
Max Travel of worktable	1100/1600/2100/3100 mm	2100/3100 mm
Swivel range of worktable	-3~+7°/-3~+6°-2~+5°/-2~+3°	-2~+5°/-2~+3°
External wheel size	Ø600x75x305 mm	Ø600x75x305 mm
Spindle speed of workhead	26/52/90/130/180/260 r/min	26/52/90/130/180/260 r/min
Grinding spindle speed	1100 r/min	1100 r/min
Headstock top	NO.5	NO.5
Tailstock top	NO.4/ NO.4/ NO.5/ NO.5	NO.5
Rapid advance and withdrawal amount	50 mm	50 mm
Wheelhead displacement perrev of handwheel coarse/fine	2/0.5 mm	2/0.5 mm
Wheelhead displacement per div of handwheel coarse/fine	0.01/0.0025 mm	0.01/0.0025 mm
Total motor power	14.27 kw	14.27 kw
Overall dimensions(LxWxH)	3605/4605/5605/7605x1810x1515mm	5605/7605x1810x1515 mm
Machine weight	4000/4600/6600/8600 kg	6600/8600 kg
Roundness	≤1500 1.5um >1500 2.5μm	≤1500 1.5um >1500 2.5μm
Uniformity of dia.in longitudinal section	≤750 5μm >750 8μm	Ra≤0.32 μm
Surface wavIneSS	1 μm	1 μm
Surface roughness	Ra 0.16 μm	Ra 0.16 μm

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
