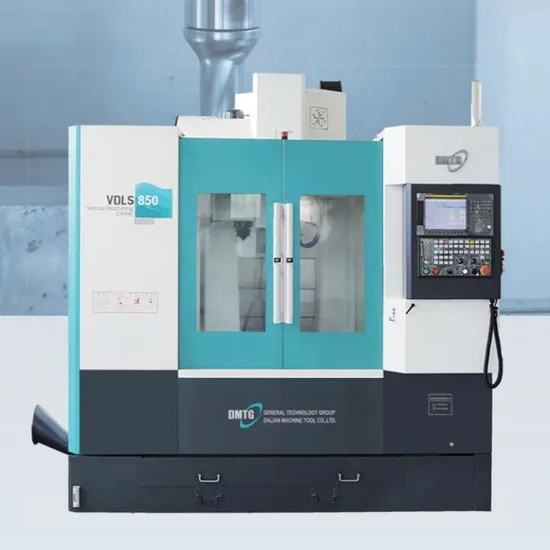

| Model | VDLS850 |
| Table | |
| Worktable size | 1000*500mm |
| T-Slot (Quantity*Width*Distance) | 5*18*100mm |
| Max load of worktable | 500kg |
| Travel | |
| X/Y/Z axis travel | 860/510/560mm |
| X/Y/Z axis guideway type | Linear guideway |
| Distance from spindle center to column | 607mm |
| Distance from spindle nose to table | 145~705mm |
| Feedrate | |
| Rapid traverse of X/Y/Z axis | 36/36/30m/min |
| Cutting feed rate | 0~10000mm/min |
| Spindle | |
| Max spindle speed | 12000r/min |
| Spindle taper | No.40 (7:24) |
| ATC system | |
| Tool magazine capacity | 24T/Arm |
| Tool shank type | BT40 |
| Max tool weight | 8kg |
| Max tool diameter (w/o adjacent tools) | 24T: φ78/155mm |
| Max tool length | 300mm |
| Time of tool change (T-T) | 24T: 2.5s |
| Accuracy | |
| X/Y/Z axis positioning accuracy | 0.008/0.008/0.008mm |
| X/Y/Z axis repeatability accuracy | 0.005/0.005/0.005mm |
| Control System and Motor | |
| Control system | GSK, FANUC, MITSUBISHI, KND, Siemens |
| Spindle servo motor | βiI8/12000-8 (7.5/11kW) (35.8/70Nm) |
| Three axis servo motors | X/Y:βiSc 12/3000-B Z:βiS22/3000 B-B (1.8/1.8/3 kW)(11/11/20 Nm) (3000/3000/3000r/min) |
| General | |
| Machine dimensions (L*W*H) | 2496*2530*2679mm |
| Packing Size | 2310*3600*2565mm |
| Net weight/Gross weight | 5600kg/6240kg |
